Description
DV150X0M-N12 General Description
Here are the key points about this BOE DV150X0M-N12 IPS LCD Display :

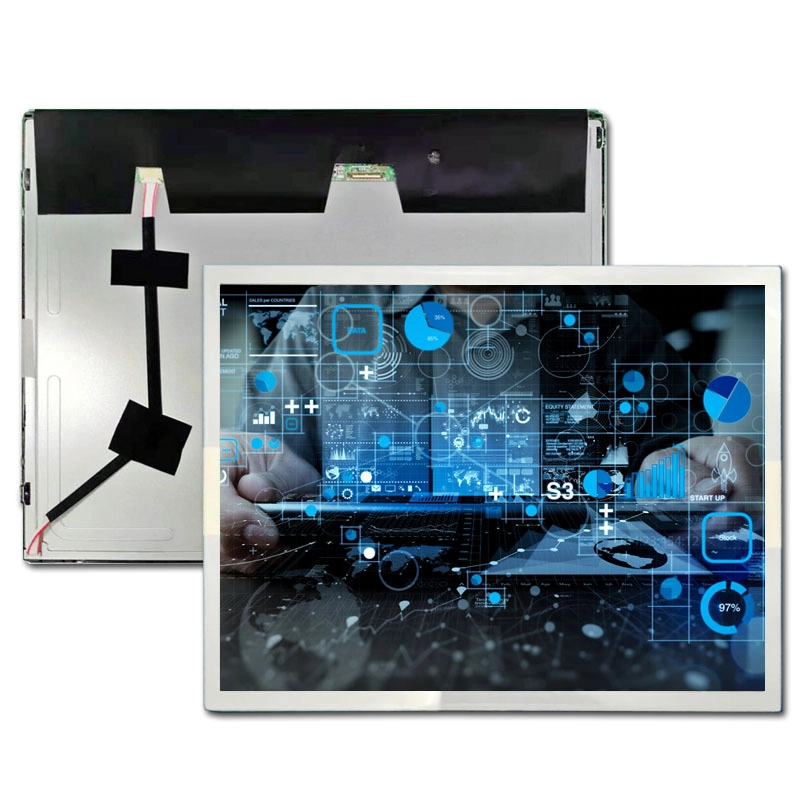

The BOE DV150X0M-N12 IPS LCD Display is a high-performance 15.0-inch color LCD display designed for industrial and commercial applications.
Featuring an enhanced eDP interface for faster data transmission and lower power consumption, it delivers crisp 1024×768 resolution with 350cd/m² brightness for optimal visibility in bright environments.
The IPS panel ensures consistent 89°/89°/89°/89° viewing angles, ideal for multi-user scenarios.
Built to endure extreme conditions, it operates reliably in temperatures from -20°C to 70°C and boasts a 50,000-hour LED lifespan.
With a slim 10mm profile and 1000:1 contrast ratio, this rugged display is engineered for seamless integration into automation systems, medical equipment, and outdoor digital signage.
BOE DV150X0M-N12 Application & Performance
Perfect for industrial control panels, transportation dashboards, and harsh-environment kiosks, the DV150X0M-N12 excels where reliability is critical. Its high brightness and IPS technology ensure readability under direct sunlight or dim factory lighting, while the eDP interface guarantees stable performance in EMI-sensitive settings. The wide operating temperature range makes it suitable for freezing warehouses, high-heat machinery, or outdoor solar-powered systems. With no touchscreen, it reduces complexity and maintenance in dusty or high-vibration environments like CNC machines, EV charging stations, and laboratory instruments. The compact 326.5×253.5mm design allows easy retrofitting into legacy equipment.
BOE DV150X0M-N12 Specifications
| BOE DV150X0M-N12 Specifications | |||
| Display Size | 15.0 inch (381.0 mm diagonal) | Rapport de contraste | 1000:1 (typical) |
| Résolution | 1024 × 768 (XGA) | Température de fonctionnement | -20°C to +70°C |
| Luminosité | 350 cd/m² (typical) | Température de stockage | -20°C to +70°C |
| Module Dimensions | 326.5 × 253.5 × 10.0 mm | Backlight Lifetime | 50,000 hours (minimum) |
| Zone active | 304.128 × 228.096 mm | Alimentation électrique | 3.3V ±5% |
| Panel Technology | IPS (In-Plane Switching) | Touch Panel | Not included |
| Angle de vision | 89°/89°/89°/89° (U/D/R/L) | Type d'affichage | Color TFT LCD |
| Interface | eDP (Embedded DisplayPort) | ||
Pièces personnalisables
Câble d'affichage
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Verre et écran tactile personnalisés
Afin d'améliorer la durabilité et les performances du moniteur, vous pouvez opter pour une vitre de protection découpée sur mesure pour votre moniteur. Vous pouvez choisir l'épaisseur qui vous convient et opter pour la méthode de collage optique, ce qui permet de protéger le moniteur contre l'humidité et la casse.
Contactez-nous pour obtenir la solution personnalisée.
