Description

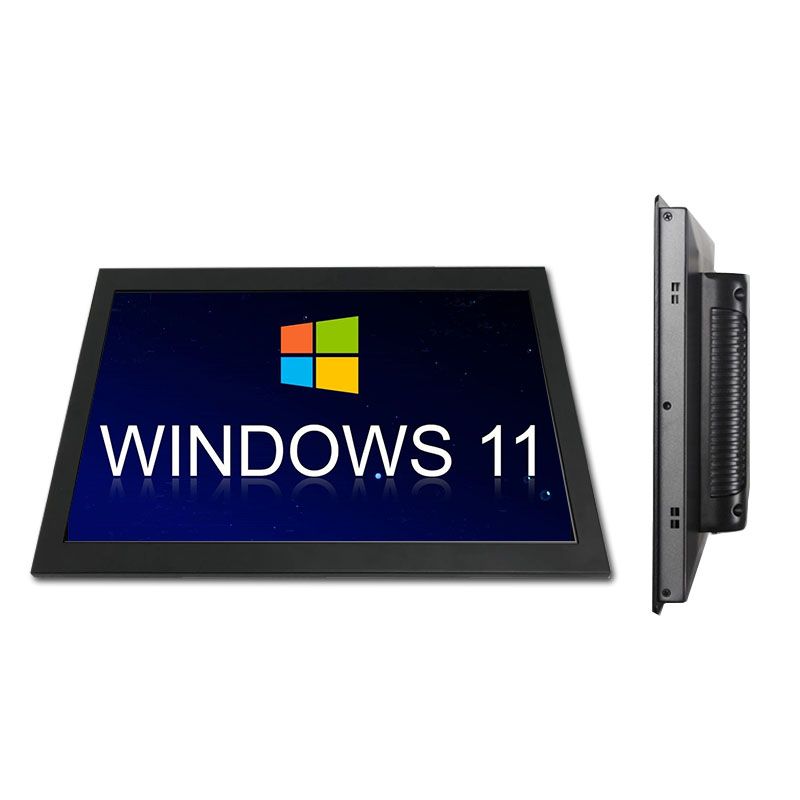

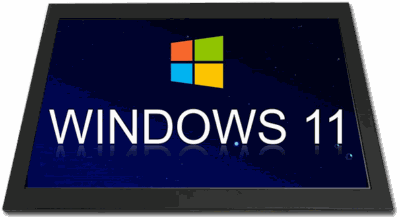

21.5 inch Industrial LCD Monitor main features
Here are the key points about this 21.5 inch Industrial LCD Monitor :
Original capacitive touch screen, high resolution, fingertip light touch, 3ms can quickly respond to high-speed transmission reaction, one-time correction, strong stability, strong anti-interference.
HDMI+VGA standard interface, we support interface customization and expansion
Multi-hole heat dissipation body, the back shell adopts multi-hole heat dissipation design, which can effectively and timely dissipate heat, so that the machine can work normally and stably for a long time
Application areas: CNC machine tools, bank autonomous terminals, automation industry, medical equipment, autonomous terminals, security monitoring, etc.
| 21.5″ Industrial Touch Monitor LCD Display |
| Taille |
21.5″ |
Viewing angle (L/R/U/D) |
89°/89°/89°/89°(Typ.) |
| Display area |
479.84 (H) × 271.31 (V))mm |
Rapport de contraste |
1000:01:00 |
| Résolution |
1920*1080 |
Couleur |
16.7M |
| Dot pitch |
0.24825 (H) X 0.24825 (V)mm |
Response time |
12/10 (Typ.)(Tr/Td) (ms) |
| Display ratio |
16:09 |
Luminosité |
300cd/m2 |
| 21.5″ Industrial Touch Monitor Touch Screen |
| Touch type |
Capacitive touch (G+G), ILITEK solution |
Transmittance |
≥85% |
| Number of supported points |
10 point |
Service life |
>50 million times |
| Touch mode |
Finger touch |
Linear error |
≤2.5mm |
| Surface hardness |
≥6H |
Haze |
3%(Max) |
| Response time |
<3ms |
|
|
| 21.5″ Industrial Touch Monitor Chassis |

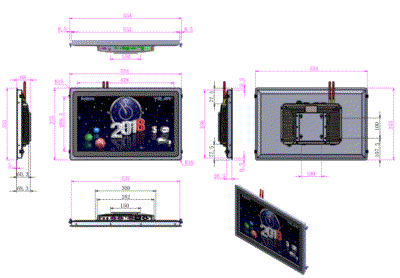

| Appearance size |
554*355*68.3mm |
Poids net |
7.5KG |
| Opening size |
537*336mm |
Gross weight |
8.5KG |
| Touch step thickness |
3mm |
Packing size |
615*465*165mm |
| Wall mounting hole position |
100*100mm |
|
|
| Display solution configuration specifications |
| Interface |
VGA*1 |
Packing List |
monitor*1 |
| HDMI*1 |
HDMI cable*1 |
| Audio*1 |
Instruction manual*1 |
| USB*1 for touch |
Dual male USB cable*1 |
| Consommation d'énergie |
Rated power ≤20W |
Adapter*1 |
| Standby power ≤0.5W |
Environnement |
Storage temperature and humidity: -20~60℃, 20~85RH, no condensation |
| Rated voltage 100-240V (50/60Hz) |
Working temperature and humidity: 0~50℃, 20~85RH, no condensation |
| Alimentation électrique |
DC 12V(optional DC 9-36V wide voltage, Phoenix terminal interface) |
| Performance |
Industrial-grade motherboard, solid-state capacitor, anti-interference, anti-surge |
Moniteurs LCD Miqidisplay sont plus minces et plus économes en énergie que les anciens écrans à tube cathodique, et offrent une excellente reproduction des couleurs et une grande luminosité. Notre offre comprend des écrans de signalisation numérique et des écrans à boutons, des écrans industriels, des ordinateurs industriels à panneau X86 et des écrans portables ultraminces. Ils s'appliquent également aux appareils ménagers, aux produits blancs, aux points de vente, aux instruments domestiques et industriels, aux appareils audiovisuels et aux appareils médicaux.
Q: What is the screen size and aspect ratio?
A: 21.5-inch diagonal with full HD 16:9 widescreen format
Q: What is the native display resolution?
A: 1920 × 1080 pixels (Full HD 1080p resolution)
Q: What video/audio interfaces are provided?
A: Comprehensive connectivity including:
- HDMI 1.4 (with audio support)
- VGA (D-Sub 15-pin)
- 3.5mm audio input/output
- DC power input (12V)
Q: What touch technology is implemented?
A: Advanced projected capacitive touchscreen featuring:
- 10-point multi-touch capability
- ≤3ms response time
- ≥85% light transmittance
- Anti-glare surface treatment
