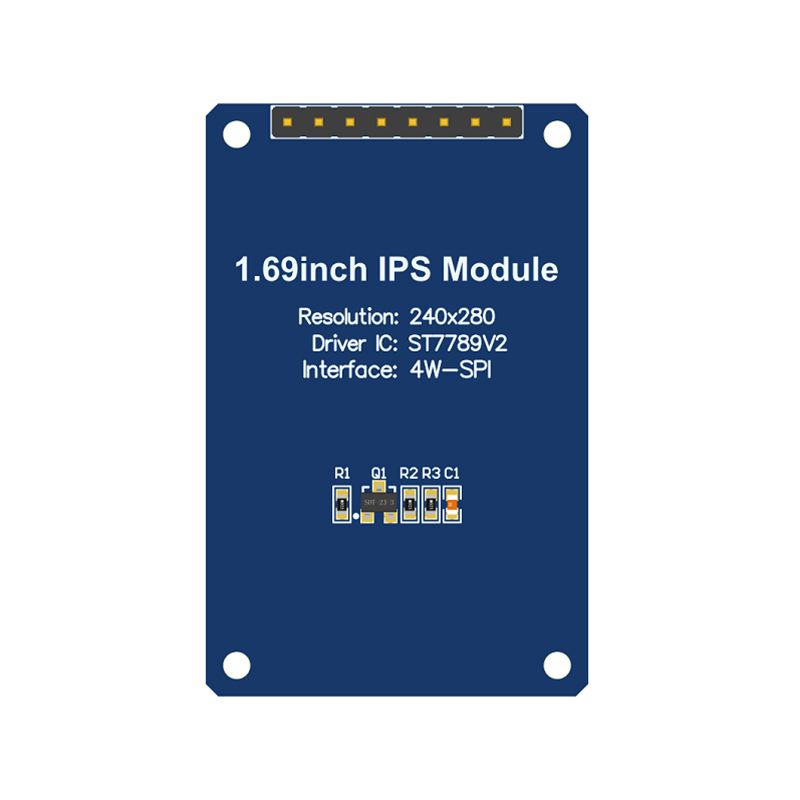

1.69″ SPI LCD Arduino TFT Display | SPI Interface
Here are the key points about this 1.69″ SPI LCD Arduino TFT Display
1.69 inch IPS TFT Display Module engineered for embedded systems. Featuring a crisp 240×280 resolution with 65K RGB color reproduction, this display delivers 170° wide viewing angles through advanced IPS technology.
✅ Ultra-compact 4-wire SPI interface minimizes GPIO usage
✅ Plug-and-play compatibility with STM32/C51/MSP430 platforms
✅ Robust performance across -10℃ to 60℃ environments
✅ Anti-glare surface treatment for outdoor readability
✅ <15ms response time for dynamic content display
1.69 inch IPS SPI Module Key Parameters
| 1.69 inch IPS SPI Module Key Parameters | |||
| Display Color | RGB 65K color | Active Area (AA area) | 27.972×32.634 (mm) |
| Taille d'écran | 1.69(inch) | Module PCB Size | 31.00×48.00(mm) |
| Type | Ips | Température de fonctionnement | -10℃~60℃ |
| IC de conducteur | ST7789 | Température de stockage | -20 ℃ ~ 70 ℃ |
| Résolution | 240*280 (Pixel) | VCC power voltage | 3.3V |
| Interface de module | 4-line SPI interface | ||

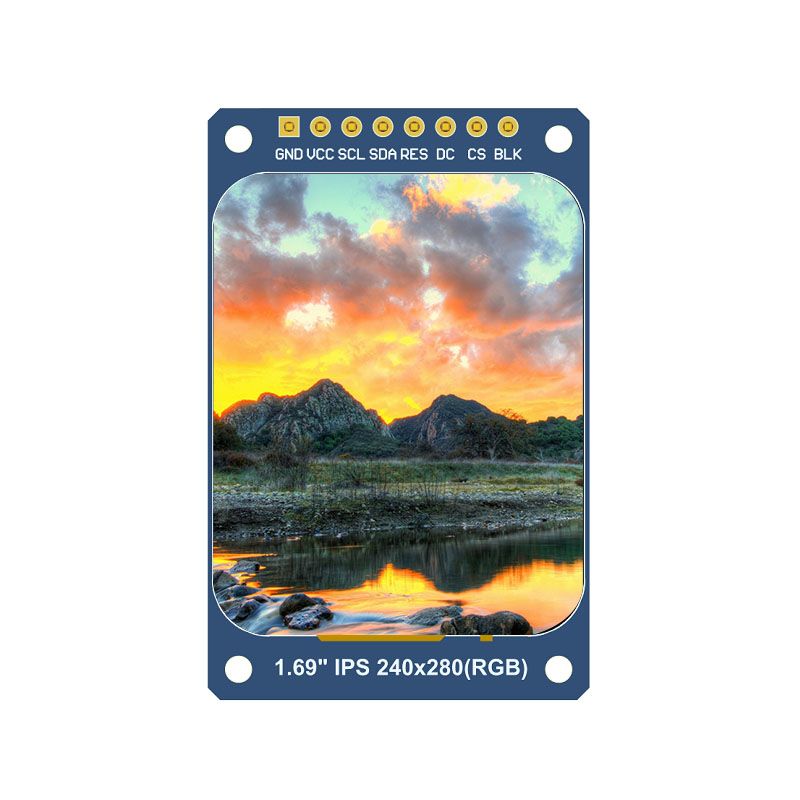

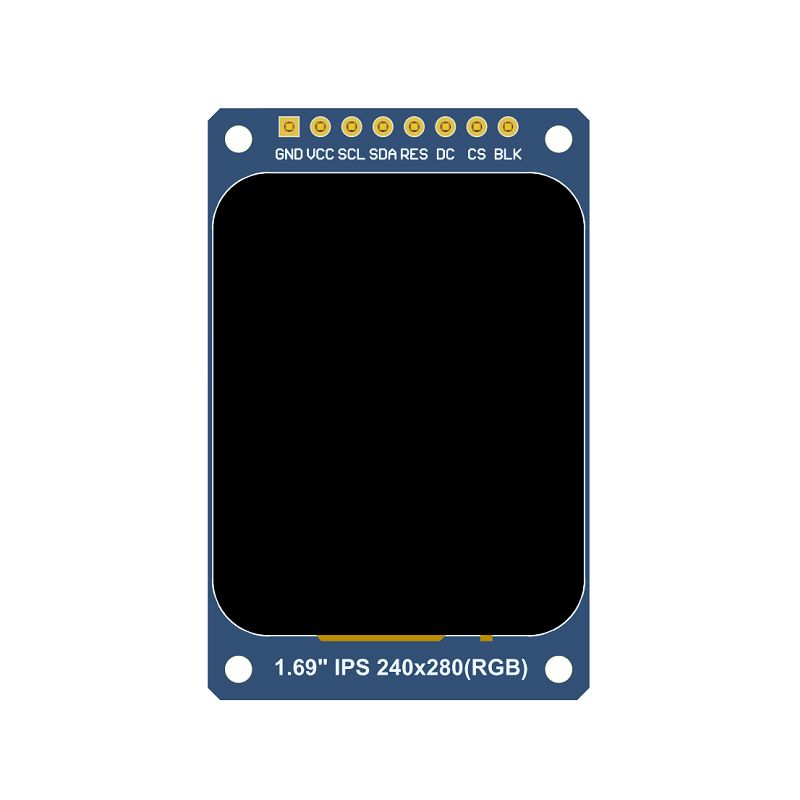

1.69 inch IPS SPI Module Interface
| 1.69 inch IPS SPI Module Interface | |||||
| Épingle no. | SYMBOLE | DESCRIPTION | Épingle no. | SYMBOLE | DESCRIPTION |
| 1 | GND | LCD Power ground | 5 | RES | LCD reset control signal(Low level reset) |
| 2 | VCC | LCD power supply is positive (3.3V) | 6 | DC | LCD register / data selection control signal |
| 3 | SCL | LCD SPI bus clock signal | 7 | CS | LCD chip select control signal (low level enable) |
| 4 | SDA | LCD SPI bus write data signal | 8 | BLK | LCD backlight control signal (high level lighting, |
Miqidisplay TFT LCD display provide vivid and full-color visual effects, capable of showing bright images, fast animations, complex graphics, custom fonts, as well as various touchscreen options . They support a variety of interface options, such as HDMI, SPI, LVDS, MIPI, RGB and EDP.
Ceux-ci présentent des tailles et des résolutions standard de l'industrie.
