TM101DDHG06-00 General Description
Here are the key points about this TIANMA TM101DDHG06-00 TTL Industrial LCD :

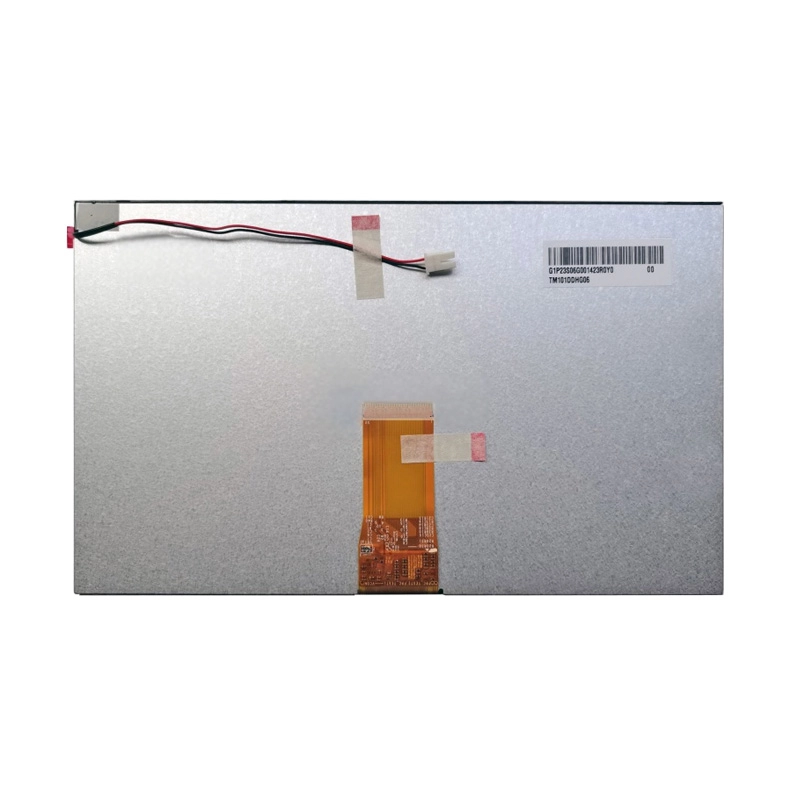

The TIANMA TM101DDHG06-00 TTL Industrial LCD is a 10.1-inch TN color LCD module offering 1024×600 resolution and 350 cd/m² brightness, tailored for industrial and medical applications requiring stable signal transmission.
Its TTL interface ensures compatibility with legacy industrial PCs and embedded systems, while the 500:1 contrast ratio provides clear visuals in controlled lighting.
Built for harsh environments, it operates in -20°C to 70°C and withstands storage in -30°C to 80°C, backed by a 30,000-hour LED lifespan.
With a 3.3V low-power design and 75/75/60/60 viewing angles, this slim 235×143×5.5mm display is ideal for fixed-view installations demanding reliability.
TIANMA TM101DDHG06-00 LCD Application & Performance
Optimized for factory automation HMIs, medical diagnostic monitors, and railway control panels, the TM101DDHG06-00 excels in environments requiring TTL compatibility, such as semiconductor manufacturing equipment and laboratory analyzers. Its 350 cd/m² brightness suits indoor industrial kiosks and hospital bedside terminals, while the wide temperature range supports cold-chain logistics displays and oil refinery control rooms. The TTL signal stability powers agricultural machinery dashboards and textile production line interfaces, and its slim profile fits portable inspection devices and vending machine screens. Ideal for security system monitors, pharmaceutical QC stations, and industrial IoT edge devices needing long-term reliability.
TIANMA TM101DDHG06-00 Specifications
| TIANMA TM101DDHG06-00 Specifications | |||
| Tamaño diagonal | 10.1 pulgadas | Relación de contraste | 500:01 |
| Número de píxeles | 1024×600 | Temperatura de funcionamiento | -20 ~ 70 °C |
| Luminancia | 350 | Temperatura de almacenamiento | -30 ~ 80 °C |
| Tamaño del módulo | 235×143×5.5 | Vida útil del LED | 30000 |
| Área activa | 222.72×125.28 | Soporte para pantalla táctil | Sin |
| Dirección de observación | TN | Fuente de alimentación | 3.3/11/22/-7V |
| View Angle (U {{url_placeholder_0}}) | 75/75/60/60 | Tipo de pantalla | Color tft |
| Interfaz | TTL | ||
Piezas personalizables
Cable de pantalla
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Cristal y pantalla táctil personalizados
Para mejorar la durabilidad y el rendimiento del monitor, puede optar por un cristal de protección cortado a medida. Puede seleccionar el grosor que mejor se adapte a sus necesidades y optar por el método de unión óptica, lo que protege el monitor contra la humedad y las roturas.
Contáctenos Para obtener la mejor solución personalizada.
