TM084SDHG02-00 General Description
Here are the key points about this TIANMA TM084SDHG02-00 TN LCD for Outdoor & Industrial :

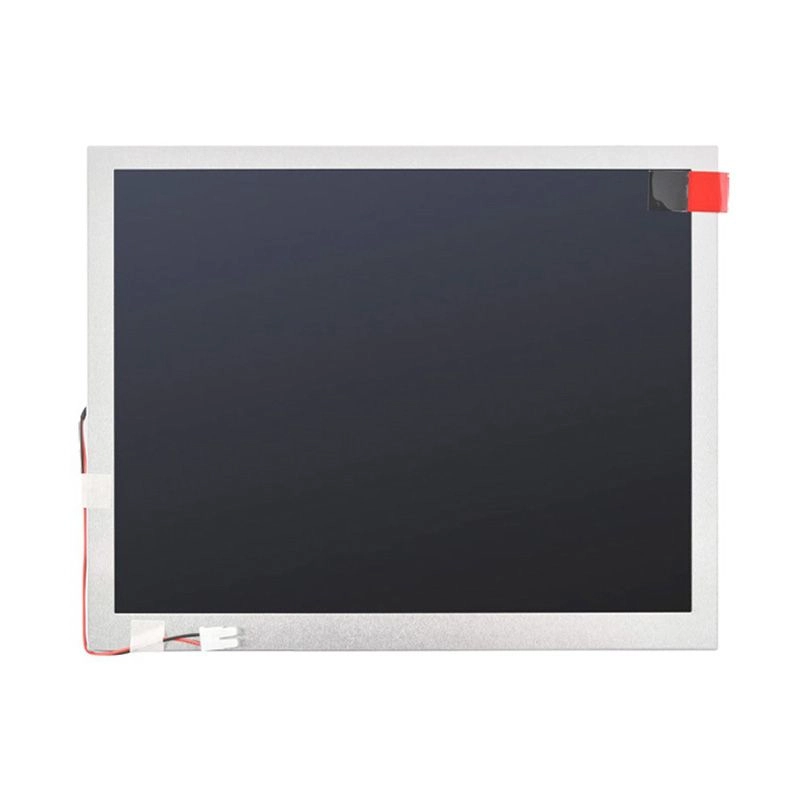

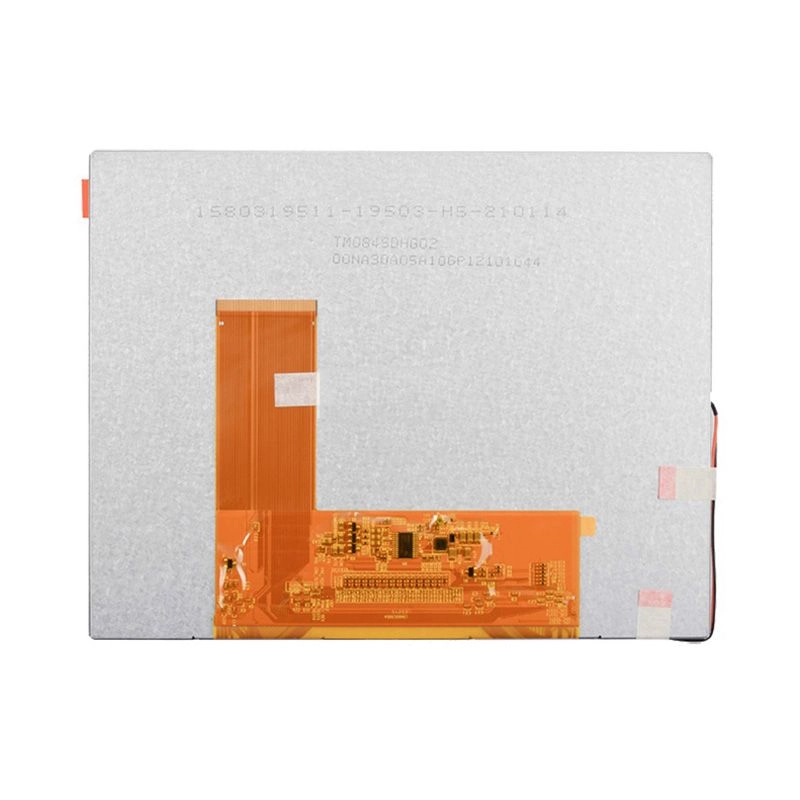

The TIANMA TM084SDHG02-00 TN LCD for Outdoor & Industrial is an 8.4-inch TN color LCD module with 800×600 resolution and 350 cd/m² high brightness, designed for industrial systems needing visibility in direct sunlight.
With a 30,000-hour LED lifespan and an operating range of -20°C to 70°C, it ensures stable performance in extreme conditions.
The RGB interface guarantees compatibility with legacy control systems, while the 3.3V low-power design reduces energy costs.
Featuring a 500:1 contrast ratio and 70/70/60/70 viewing angles, this non-touch display delivers sharp visuals in outdoor or high-ambient-light settings.
Its compact design (189.75×149.4×6.6mm) and storage tolerance of -30°C~80°C make it ideal for space-constrained industrial installations.
TIANMA TM084SDHG02-00 TN LCD Application & Performance
Optimized for outdoor solar inverters, construction equipment dashboards, and transportation signage, the TM084SDHG02-00 excels in high-glare environments like desert solar farms or port logistics displays. Its 350 cd/m² brightness ensures readability in direct sunlight for EV charging stations and agricultural machinery HMIs. The rugged temperature tolerance supports freezer warehouse monitors and arctic oilfield sensors, while the TN panel’s stability powers mining control panels and railway signal systems. Compatible with legacy PLCs in water treatment plants, its slim profile integrates into portable medical devices and rugged handheld terminals. Ideal for smart traffic signs, outdoor kiosks, and industrial IoT edge devices requiring sunlight-readable durability.
8.4″ Product Specifications
| 8.4″ Product Specifications | |||
| Tamaño diagonal | 8.4 pulgadas | Relación de contraste | 500:01:00 |
| Número de píxeles | 800 × 600 | Temperatura de funcionamiento | -20 ~ 70 °C |
| Luminancia | 35000% | Temperatura de almacenamiento | -30 ~ 80 °C |
| Tamaño del módulo | 189.75×149.4×6.6 | Vida útil del LED | 30000 |
| Área activa | 170.4×127.8 | Soporte para pantalla táctil | Sin |
| Dirección de observación | TN | Fuente de alimentación | 3,3 V |
| View Angle (U {{url_placeholder_0}}) | 70/70/60/70 | Tipo de pantalla | Color tft |
| Interfaz | RGB | ||
Piezas personalizables
Cable de pantalla
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Cristal y pantalla táctil personalizados
Para mejorar la durabilidad y el rendimiento del monitor, puede optar por un cristal de protección cortado a medida. Puede seleccionar el grosor que mejor se adapte a sus necesidades y optar por el método de unión óptica, lo que protege el monitor contra la humedad y las roturas.
Contáctenos Para obtener la mejor solución personalizada.
