Descripción
4.8 inch Capacitive Touch screen
Introduce this 4.8 inch Industrial touch screen , supports 5-point multi-touch with touch + gesture operation.it operates reliably within a -20 ~ 70 °C temperature range, withstand diverse environments, suitable for industrial, commercial, or consumer applications.
4.8 inch Industrial touch screen Advanced Features:
Multi-touch capability with fast response and precise positioning
Enables smooth interaction with rapid feedback and high-precision touch localization.
Passed rigorous tests for high/low temperature, vibration, and heavy ball drop
Proven durability under extreme environmental conditions and mechanical impacts.
24/7 online technical support from an in-house team, the factory-direct advantage, and worry-free after-sales service
Immediate expert assistance, vertically integrated manufacturing, and comprehensive post-sales support.
4.8 inch Touch screen Construction
| 4.8 inch Touch Screen Construction | |
| Tapa de cristal | Thickness: 0.7 mm±0.05mm |
| OCR | Thickness: 0.15mm ± 0.05mm |
| Sensor | Thickness: 0.7mm ± 0.05mm |

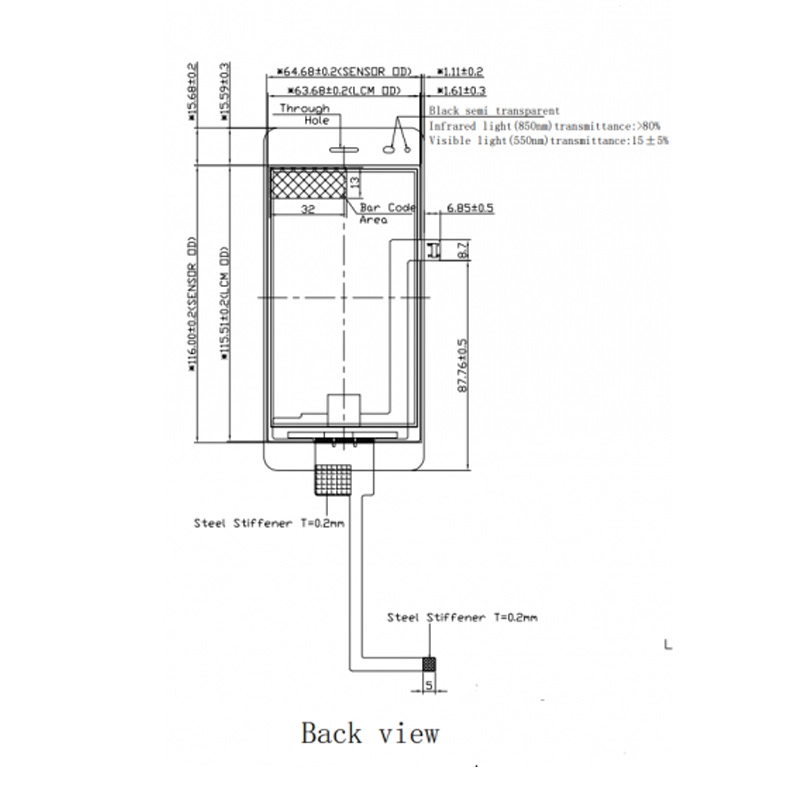

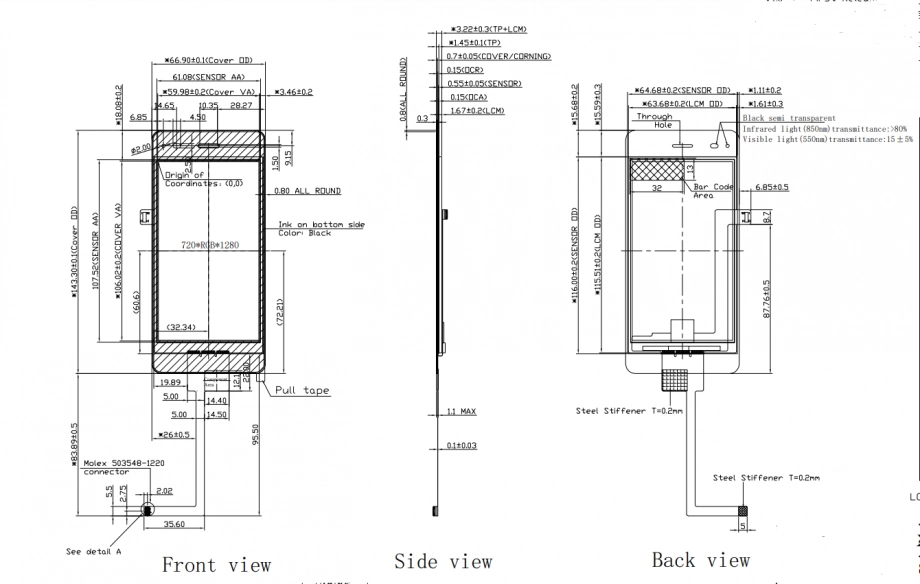

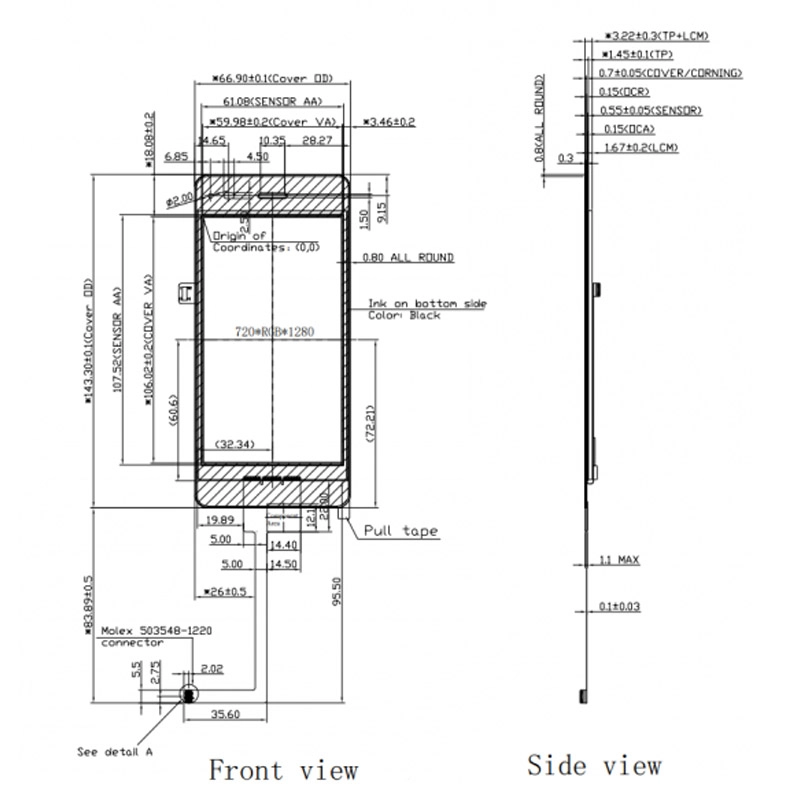

4.8 inch Touch Screen Mechanical Characteristics
| 4.8 inch Touch Screen Mechanical Characteristics | |||
| Tamaño táctil | 4.8 inch | TP Thickness | 1.45 mm±0.1 |
| Dimensión exterior | 143.3*66.9 mm | Número de toques | 5 |
| Vista | 106.02*59.98 mm | Interfaz | IIC |
| Área activa | 107.52*61.08 mm | Controlador | Microchip |
Piezas personalizables
Cable de pantalla
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Cristal y pantalla táctil personalizados
Para mejorar la durabilidad y el rendimiento del monitor, puede optar por un cristal de protección cortado a medida. Puede seleccionar el grosor que mejor se adapte a sus necesidades y optar por el método de unión óptica, lo que protege el monitor contra la humedad y las roturas.
Contáctenos Para obtener la mejor solución personalizada.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
