17.3 inch CTP Capacitive Touch Panel

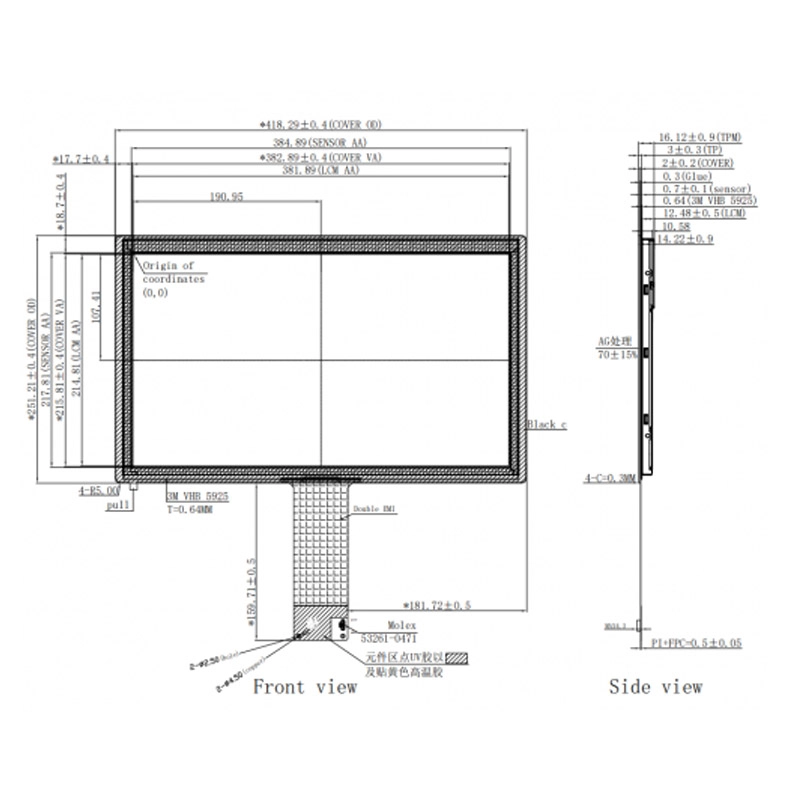

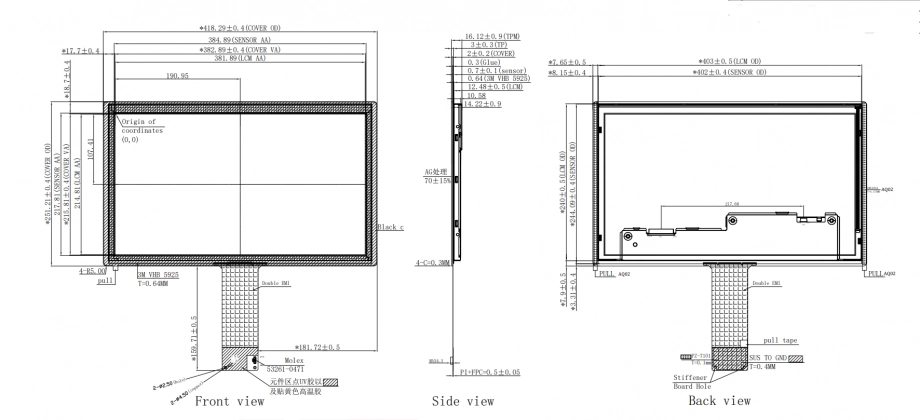

This 17.3 inch CTP Capacitive Touch Panel with Glass/Glass structure and a 16:9 (W:H) widescreen aspect ratio. The active area measures 381.89 × 214.81 mm, while the view area is slightly larger at 382.89 × 215.81 mm. With an outline dimension of 418.29 × 251.21 mm and a thickness of 16.12 mm, it offers robust physical dimensions for integration. The tail exit is positioned at 6 o’clock (bottom center) for cable management. It supports 10-point multi-touch with touch + gesture operation, enabling intuitive user interaction. We separate the controller to allow flexible integration, and use USB as the interface type for easy connectivity. Designed for versatile environments, it operates within a 0 ~ 70 °C temperature range, suitable for moderate industrial or commercial use.
Why Choose us? 3 reasons tell you:
In-house manufacturing reduces lead times significantly while proactively addressing potential quality variances through strict process controls, minimizing uncontrollable factors in production.
Equipped with state-of-the-art testing facilities, we provide comprehensive environmental testing reports (e.g., high/low temperature resistance, drop tests) to validate product reliability under diverse conditions.
A dedicated technical team works collaboratively with clients to assess requirements from both engineering and operational perspectives, streamlining communication and reducing evaluation costs
17.3 inch CTP Touch Panel Construction
| 17.3 inch CTP Touch Panel Construction | |
| Tapa de cristal | Thickness: 2 mm±0.2mm |
| OCR | Thickness: 0.3mm |
| Sensor | Thickness: 0.7mm ± 0.1mm |
17.3 inch CTP Touch Panel Mechanical Characteristics
| 17.3 inch CTP Touch Panel Mechanical Characteristics | |||
| Tamaño táctil | 17.3 pulgadas | TP Thickness | 3 mm |
| Dimensión exterior | 418.29 × 251.81 mm | Número de toques | 10 |
| Vista | 381.89 × 214.81 mm | Interfaz | USB |
| Área activa | 391.89 × 214.81 mm | Controlador | Microchip |
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
