Descripción

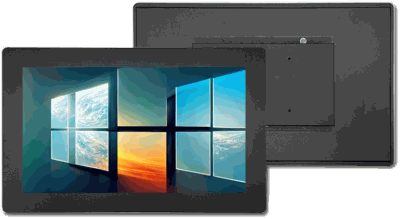

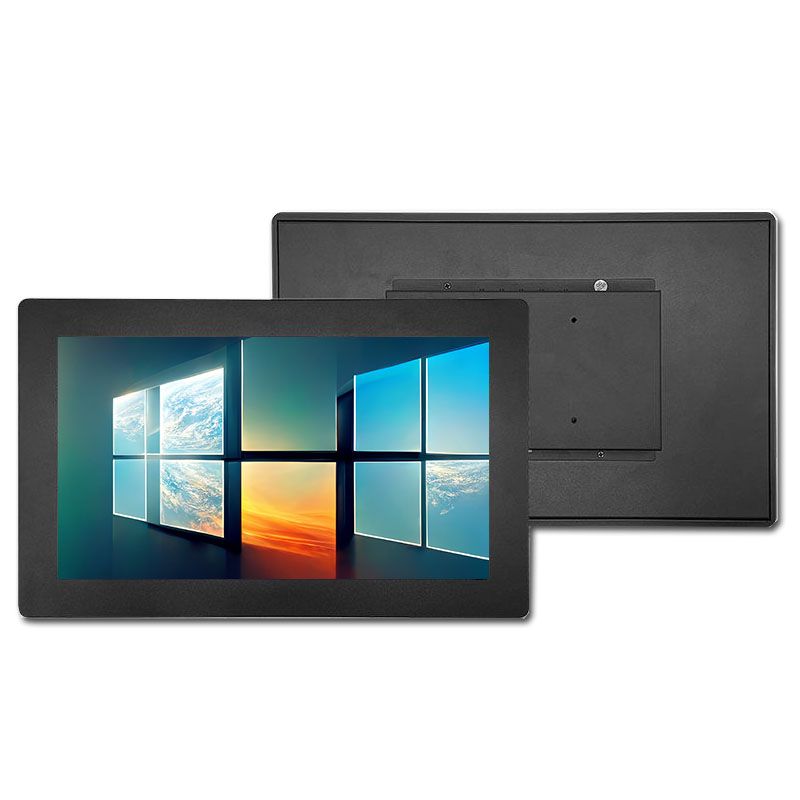

15.6 inch Industrial Display Panel main features
Here are the key points about this 15.6 inch Industrial Display Panel
Original capacitive touch screen, high resolution, fingertip light touch, 3ms can quickly respond to high-speed transmission reaction, one-time correction, strong stability, strong anti-interference.
HDMI+VGA standard interface, we support interface customization and expansion
Multi-hole heat dissipation body, the back shell adopts multi-hole heat dissipation design, which can effectively and timely dissipate heat, so that the machine can work normally and stably for a long time
All-day standby, stable endurance; with 7*24h long-term continuous operation platform capability, providing a stable working environment, the power-on capability can be set through BIOS, and it can still run stably in an unstable environment.
| 15″ Industrial Touch Monitor LCD Display | |||
| Tamaño | 15″ | Viewing angle (L/R/U/D) | 85°/85°/85°/85°(Typ.) |
| Display area | 304.128 (H) x 228.096 (V)mm | Relación de contraste | 1500:01:00 |
| Resolución | 1024*768 | Color | 16.2M |
| Dot pitch | 0.297*0.297mm | Response time | 15ms |
| Display ratio | 4:03 | Brillo | 300cd/m2 |
| 15″ Industrial Touch Monitor Touch Screen | |||
| Touch type | Capacitive touch (G+G), ILITEK solution | Transmittance | ≥85% |
| Number of supported points | 10 point | Service life | >50 million times |
| Touch mode | Finger touch | Linear error | ≤2.5mm |
| Surface hardness | ≥6H | Haze | 3%(Max) |
| Response time | <3ms | ||
| 15″ Industrial Touch Monitor Chassis | |||
| Appearance size | 378*297*68.8mm | Peso neto | 4.5KG |
| Opening size | 357.5*281.5mm | Gross weight | 5.3KG |
| Touch step thickness | 3mm | Packing size | 395*490*130mm |
| Wall mounting hole position | 100*100mm | ||
| Display solution configuration specifications | |||
| Interfaz | VGA*1 | Packing List | Monitor*1 |
| HDMI*1 | HDMI data cable*1 | ||
| Audio*1 | Instruction manual*1 | ||
| USB*1 for touch | Dual male USB cable*1 | ||
| Consumo de energía | Rated power ≤16W | Adapter*1 | |
| Standby power ≤0.5W | Environment | Storage temperature and humidity: -20~60℃, 20~85RH, no condensation | |
| Rated voltage 100-240V (50/60Hz) | Working temperature and humidity: 0~50℃, 20~85RH, no condensation | ||
| Fuente de alimentación | DC 12V(optional DC 9-36V wide voltage, Phoenix terminal interface) | ||
| Performance | Industrial-grade motherboard, solid-state capacitor, anti-interference, anti-surge | ||
Monitores LCD Miqidisplay are thinner and more energy-efficient than the old-fashioned CRT displays, featuring excellent color reproduction and brightness. Our offerings include stretched digital signage/knob screens, industrial displays, industrial panel computers | X86, and ultra-thin portable displays. They are also applicable to home appliances, white goods, POS, home and industrial instruments, A/V, and medical devices .
