Descripción
12.3 inch LCD Panel: Exclusive Self-Developed Solution
Here are the key points about this 12.3 inch Vehicle LCD Panel :
✅ Custom Backlight Module (private mold design) for uniform 1000-nit brightness—an exclusive resource in our portfolio
✅ Industrial-Grade Performance certified for automotive, industrial control, and medical applications
✅ Wide-Temperature Stability (-30℃~85℃) and anti-vibration design for harsh environments
12.3 inch Vehicle LCD Panel Exclusive Offer:
Direct from the developer—competitive pricing with 24/7 technical support. Contact us to schedule a demo for your high-end project.
Below the basic parameters for it, Tailor the interface (LVDS/RGB), brightness, dimensions, and touch solutions (capacitive/resistive) to seamlessly integrate into your device—engineered for hassle-free system integration.

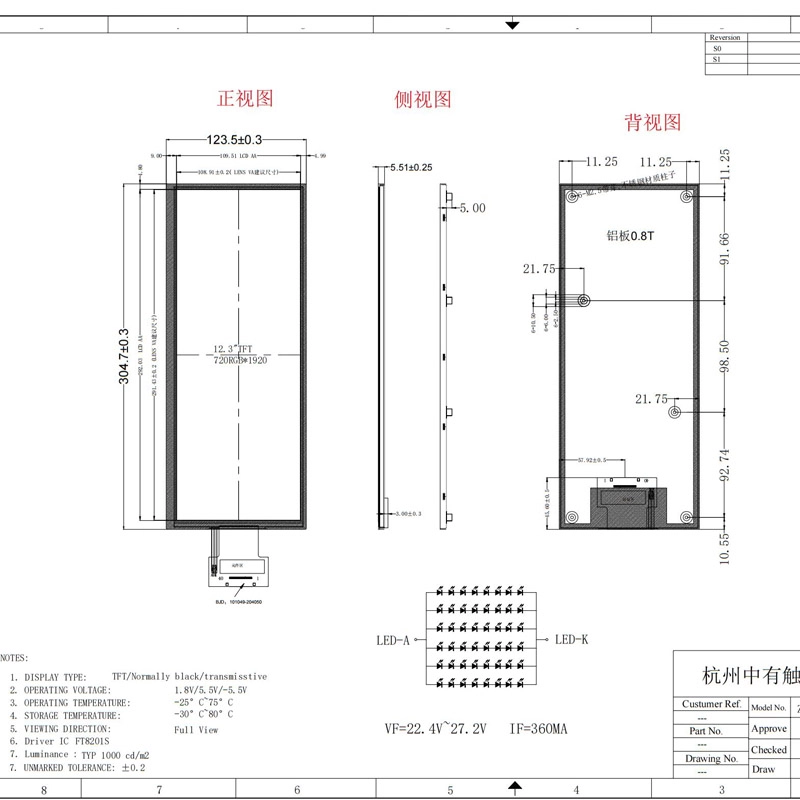

12.3″ TFT Display Specifications
| ZC-123001-1001 12.3″ Automotive TFT LCD Display | |||
| Número de modelo | ZC-123001-1001 | Temperatura de funcionamiento | -25℃ to +75℃ |
| Display Size | 12.3 inch (312.4 mm diagonal) | Temperatura de almacenamiento | -30℃ to +80℃ |
| Native Resolution | 720 × 1920 (Wide Portrait) | LED Backlight Lifetime | 20,000 hours (minimum) |
| Module Dimensions | 123.5(W) × 304.7(H) × 5.51(D) mm | Touchscreen | Not included |
| Área activa | 109.51 × 292.03 mm | Relación de contraste | 1000:1 (typical) |
| Brillo | 1000 cd/m² (High Brightness) | Fuente de alimentación | 3.3V DC |
| Signal Interface | MIPI DSI (4-lane) | Tipo de pantalla | Color tft lcd |
| Viewing Technology | Wide viewing angle (All directions) | ||
Piezas personalizables
Cable de pantalla
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Cristal y pantalla táctil personalizados
Para mejorar la durabilidad y el rendimiento del monitor, puede optar por un cristal de protección cortado a medida. Puede seleccionar el grosor que mejor se adapte a sus necesidades y optar por el método de unión óptica, lo que protege el monitor contra la humedad y las roturas.
Contáctenos Para obtener la mejor solución personalizada.
