10.4 inch Industrial Panel PC main features
Here are the key points about this 10.4 inch Industrial Panel PC:
10.4-inch medium to size, light and easy to carry
IP65 waterproof and dustproof
Industrial grade, shockproof and pressure-resistant, strong working stability
10-finger touch, sensitive response, easy to operate
500,000 times long working life
10.4 inch Industrial Panel PC |
||
| Chassis | Material/Structure | Aluminum alloy material, fanless heat dissipation structure |
| Color | Silver | |

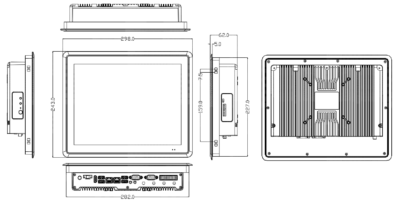

| Dimensions (L*W*H) | L272*W214*H62mm | |
| Peso neto | 2.63KG | |
| Installation | Support VESA/embedded panel installation | |
| Pantalla LCD | Type | 10.4 inch LCD, 4:3, full screen |
| Resolución | 800 * 600 | |
| Brillo | 350 cd/m2 | |
| Touch Screen | Type | Capacitive screen, 10 point touch |
| Transmittance | ≥85% | |

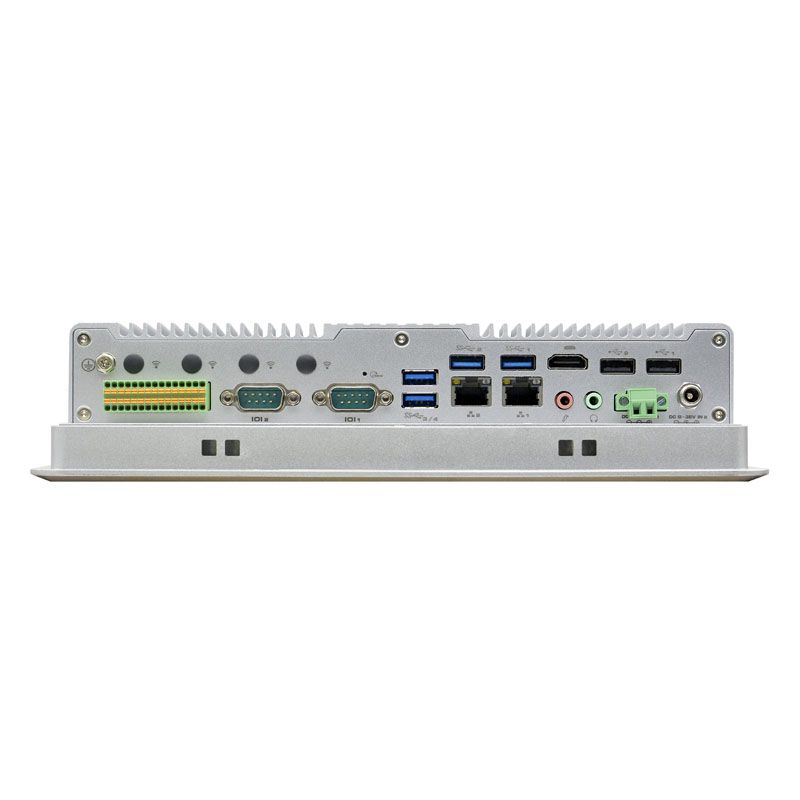

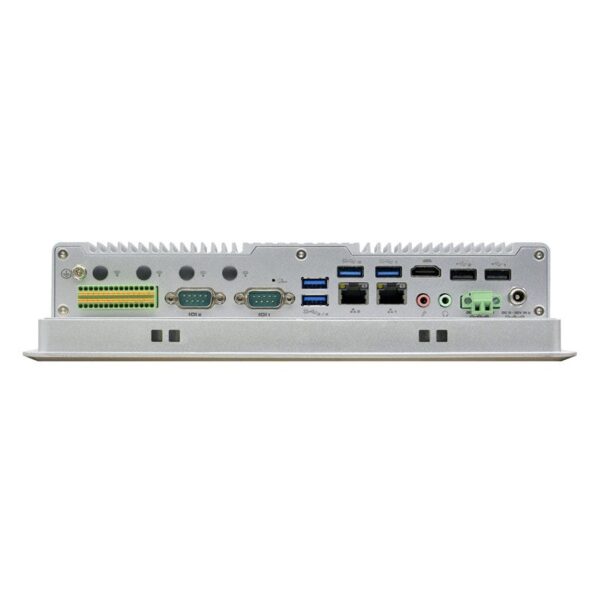

| IO interface | POWER | 1*power button, 1*one-key restore, 1*ACLOSS (power-on dial switch),1*CMOS reset button |
| Display interface | 1*HDMI | |
| LAN | 2*Intel I210 Gigabit network card, support network wake-up, PXE | |
| USB | 4*USB3.0，2*USB2.0 | |
| COM | 6*RS232 serial port, COM1 RS232 DB9 serial port, COM2 RS232/485/422 DB9 serial port, COM3-6 RS232 on 2*15P Phoenix terminal, COM3 supports RS485, COM1-2 Support the 9th pin live function | |
| Phoenix terminal | 2*15P (4 in 4 out GPO/power switch signal/COM3~COM6/5V VCC/GND) | |
| DIP switch | 10-bit DIP switch, COM2~3 RS232/485 switching, COM2 RS422 is realized through COM2_SW1 jumper | |
| Audio | 1*Line out，1*MIC | |
| Power | 1*DC aviation interface or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input | |
| Store | SATA | 1*2.5-inch hard disk slot |
| M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD | |
| MSATA | 1*MSATA | |
| Extend | M.2 | 1*M.2/WiFi，Key-E，2230，support WiFi module |
| 1*M.2/5G，Key-B，2242/52，support 5G module | ||
| Power | Power type | External power adapter |
| Voltage input | 9V~36V wide voltage | |
| Power output | AC TO DC 60W or above | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20 ℃～ 70 ℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Operating vibration | 0.5g rms/5-500HZ/random/operating | |
Monitores LCD Miqidisplay are thinner and more energy-efficient than the old-fashioned CRT displays, featuring excellent color reproduction and brightness. Our offerings include stretched digital signage/knob screens, industrial displays, industrial panel computers | X86, and ultra-thin portable displays. They are also applicable to home appliances, white goods, POS, home and industrial instruments, A/V, and medical devices .
