10.1″ LCD Display IPS Features
Here are the key points about this 10.1 inch Industrial IPS LCD Display :
This 10.1 inch Industrial IPS LCD Display offers a wide viewing angle of 85° in all directions, ensuring consistent image quality and color accuracy.
With a brightness level of 400 cd/m², the display provides excellent visibility in diverse lighting conditions, making it suitable for both indoor and outdoor use.
The LVDS interface is a high-speed standard that utilizes differential signaling to transmit data, significantly reducing electromagnetic interference (EMI) and enabling fast data transfer rates.
This capability is essential for rendering high-resolution images and videos smoothly, making it ideal for applications that require dynamic content.
Additionally, the LVDS design minimizes power consumption compared to other signaling methods, making it particularly suitable for battery-operated devices, enhancing overall efficiency in modern electronics.
10.1″ TFT-LCD Specifications
| 10.1″ TFT-LCD Display Specifications | |||
| Número de modelo | 90-10122-BH1 | Temperatura de funcionamiento | -20℃ to +70℃ |
| Display Size | 10.1″ (diagonal) | Temperatura de almacenamiento | -30℃ to +80℃ |
| Resolución | 1024 × 600 (WSVGA) | Backlight Lifetime | 20,000 horas |

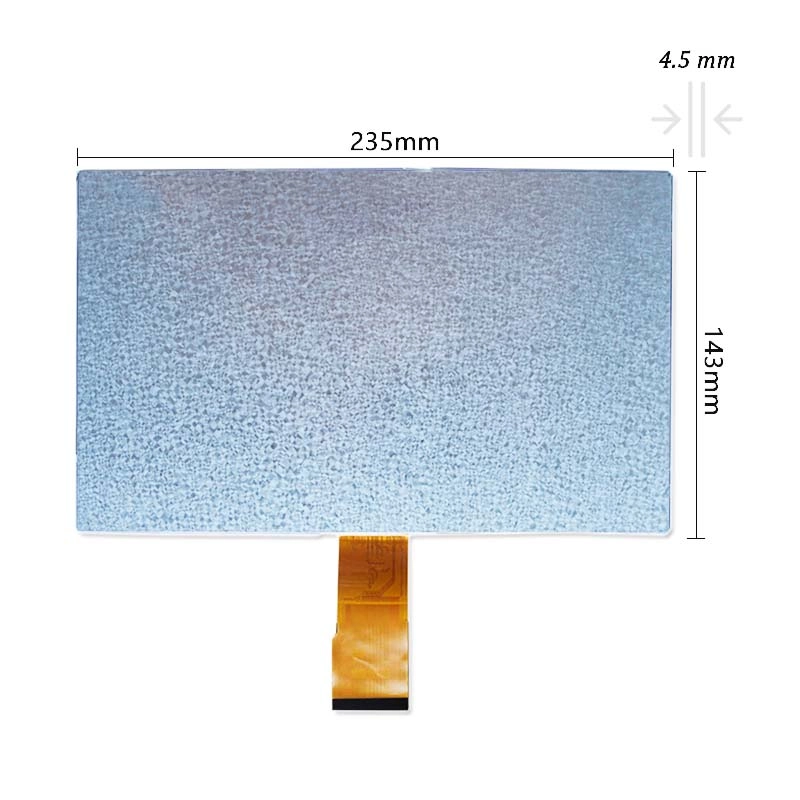

| Module Dimensions | 235.0 × 143.0 × 4.5 mm | Touchscreen | Not included |
| Área activa | 222.72 × 125.28 mm | Relación de contraste | 800:1 |
| Brillo | 400 cd/m² (typical) | Fuente de alimentación | 3.3V DC ±5% |
| Interfaz | LVDS (1-channel) | Tipo de pantalla | TFT Color LCD |
| Ángulo de visión | 80°/80°/80°/80° (L/R/U/D) | Relación de aspecto | 17:10 (wide) |
Piezas personalizables
Cable de pantalla
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Cristal y pantalla táctil personalizados
Para mejorar la durabilidad y el rendimiento del monitor, puede optar por un cristal de protección cortado a medida. Puede seleccionar el grosor que mejor se adapte a sus necesidades y optar por el método de unión óptica, lo que protege el monitor contra la humedad y las roturas.
Contáctenos Para obtener la mejor solución personalizada.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
