Descripción
10.1″ Custom LCD Screen Features

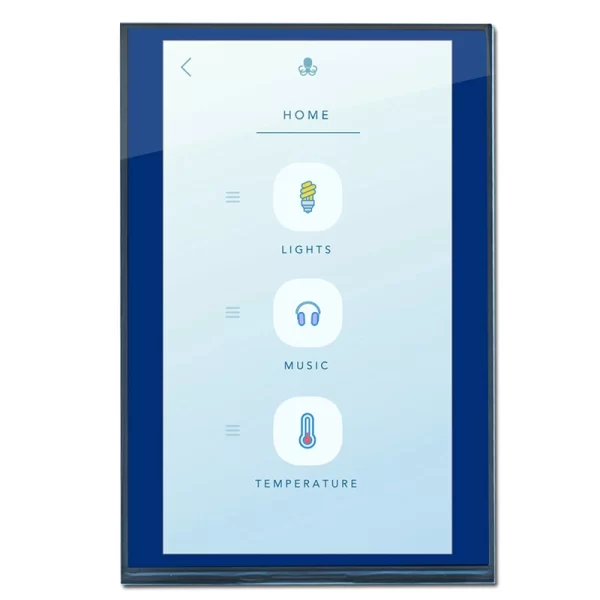

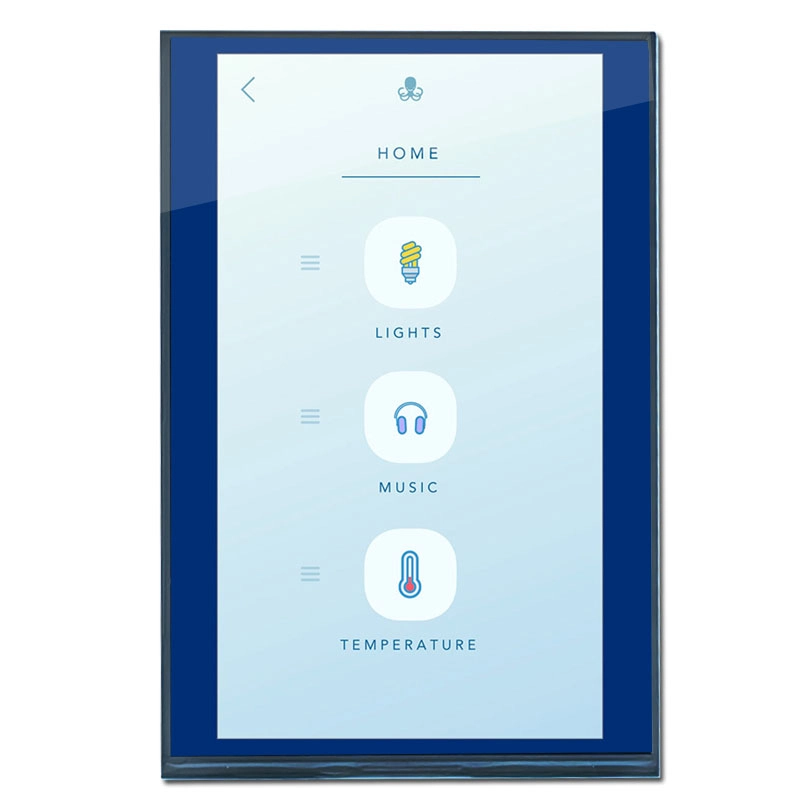

Here are the key points about this 10.1 inch Industrial Custom LCD :
This 10.1 inch Industrial Custom LCD offers resolution with 800×1280 pixels, making it suitable for a range of applications in consumer electronics and industrial settings.

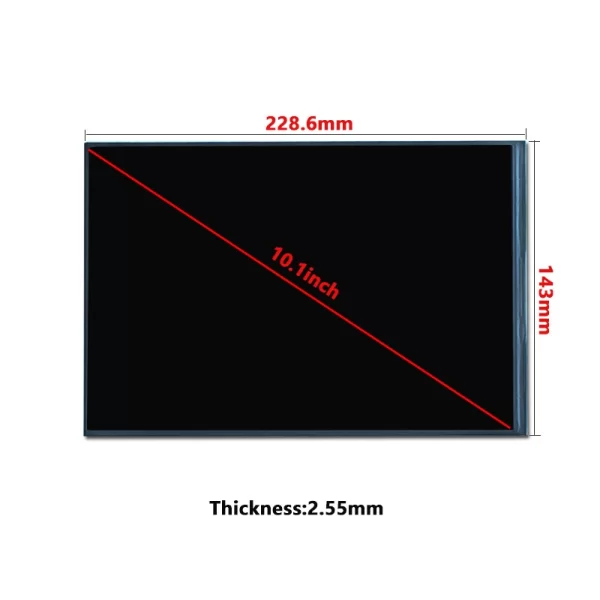

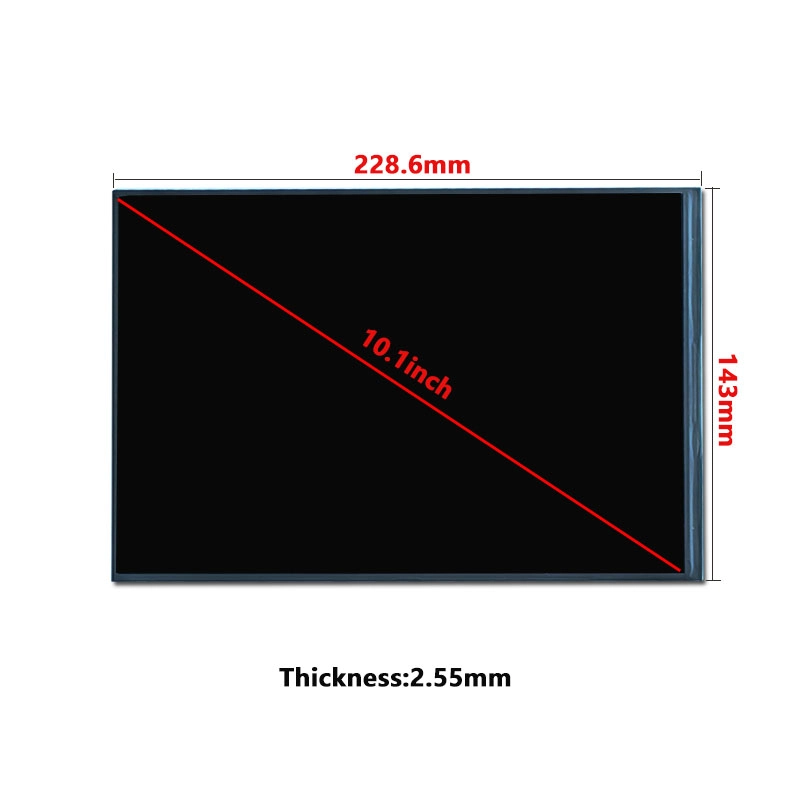

It offers an active area of 135.36mm x 216.58mm and compact dimensions of 143mm x 228.6mm x 2.55mm, ensuring easy integration into various devices.
The MIPI is a widely adopted protocol designed for mobile and portable devices, offering high-speed data transfer while maintaining low power consumption.
Its ability to support high data rates is essential for delivering smooth, high-resolution images and videos.
Additionally, MIPI’s design reduces power requirements compared to other interfaces, making it ideal for battery-operated devices and extending overall battery life.
10.1″ TFT-LCD Specifications
| 10.1″ TFT-LCD Display Specifications | |||
| Número de modelo | 90-10125-BS1 | Temperatura de funcionamiento | -20℃ to +70℃ |
| Display Size | 10.1″ (diagonal) | Temperatura de almacenamiento | -30℃ to +80℃ |
| Resolución | 800 × 1280 (WXGA) | Backlight Lifetime | 20,000 horas |
| Module Dimensions | 143.0 × 228.6 × 2.55 mm | Touchscreen | Not included |
| Área activa | 135.36 × 216.58 mm | Relación de contraste | 1000:1 |
| Brillo | 350 cd/m² (typical) | Fuente de alimentación | 3.3V DC ±5% |
| Interfaz | MIPI DSI (4-lane) | Tipo de pantalla | TFT Color LCD |
| Ángulo de visión | 80°/80°/80°/80° (L/R/U/D) | Relación de aspecto | 16:10 (wide) |
Piezas personalizables
Cable de pantalla
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Cristal y pantalla táctil personalizados
Para mejorar la durabilidad y el rendimiento del monitor, puede optar por un cristal de protección cortado a medida. Puede seleccionar el grosor que mejor se adapte a sus necesidades y optar por el método de unión óptica, lo que protege el monitor contra la humedad y las roturas.
Contáctenos Para obtener la mejor solución personalizada.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
