TM070JDHG30-00 General Description
Here are the key points about this TIANMA TM070JDHG30-00 TN LCD Module :

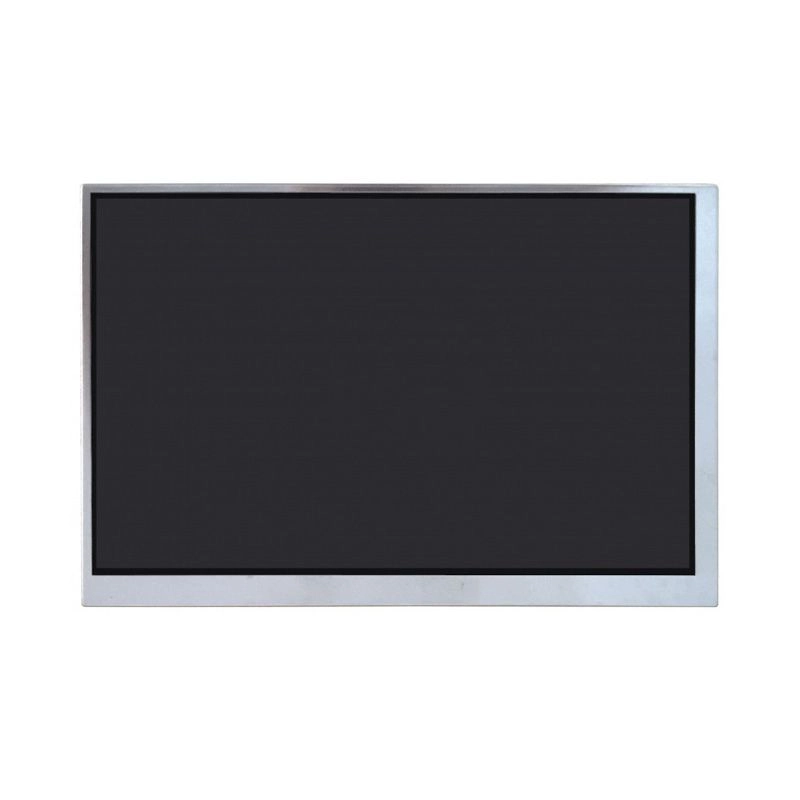

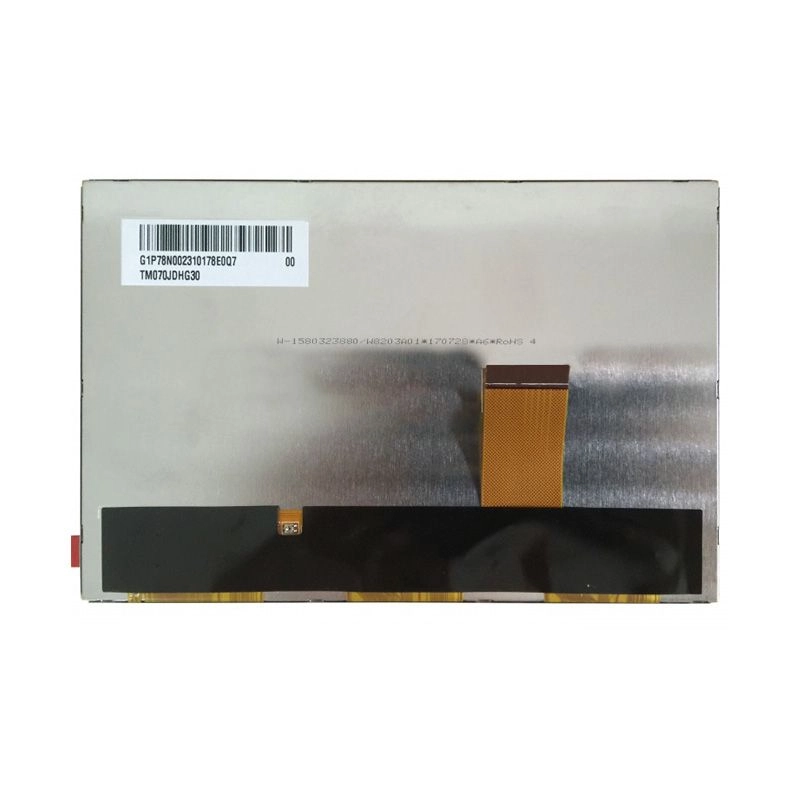

The TIANMA TM070JDHG30-00 is a 7-inch high-resolution (1280×800) color LCD module with IPS technology, providing superior 88° viewing angles in all directions.
It features 400 cd/m² brightness and an 800:1 contrast ratio, delivering vivid visuals even in direct sunlight.
Built for industrial durability, it operates reliably across -20°C to 70°C and offers a 30,000-hour LED lifespan.
The LVDS interface ensures fast data transmission for real-time applications, while the 3.3V low-power design supports energy-efficient systems.
Its slim profile (161×107×4.95mm) and non-touch design make it ideal for embedded solutions requiring robust performance in harsh environments.
TIANMA TM070JDHG30-00 TN LCD Module Application & Performance
Perfect for industrial HMIs, outdoor kiosks, and transportation systems, the TM070JDHG30-00 excels in high-ambient-light conditions like construction site displays and solar farm monitoring. Its IPS panel ensures consistent color accuracy for medical imaging equipment and aviation dashboards. The wide temperature range suits automotive diagnostics tools and cold-chain logistics trackers. With LVDS signal stability, it powers railway information boards and robotic control panels. Rugged enough for maritime navigation systems and oil/gas field sensors, this display also serves digital signage in retail environments requiring all-angle visibility. Engineers value its 30k-hour lifespan for 24/7 manufacturing line monitors.
7.0″ Product Specifications
| 7.0″ Product Specifications | |||
| Diagonale Größe | 7.0 inch | Kontrastverhältnis | 800:01:00 |
| Pixelnummer | 1280×800 | Betriebstemperatur | -20 ~ 70 °C |
| Luminanz | 40000% | Lagertemperatur | -30 ~ 80 °C |
| Modulgröße | 161×107×4.95 | LED-Lebensdauer | 30000 |
| Aktiver Bereich | 149.76×93.692 | Touchscreen-Unterstützung | Ohne |
| Ansichtsrichtung | Ips | Stromversorgung | 3.3/10.4/16/-6.8V |
| Ansicht Ansicht (u {{url_placeholder_0}}) | 70/70/50/70 | Anzeige Typ | Farbe tft |
| Schnittstelle | LVDS | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
