M118AW41 R0 General Description

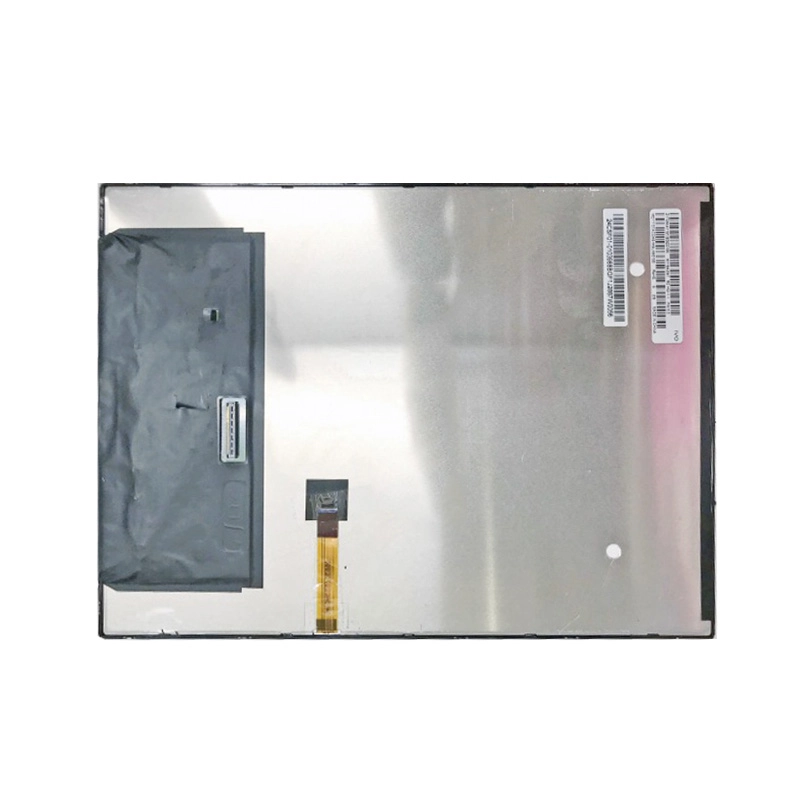

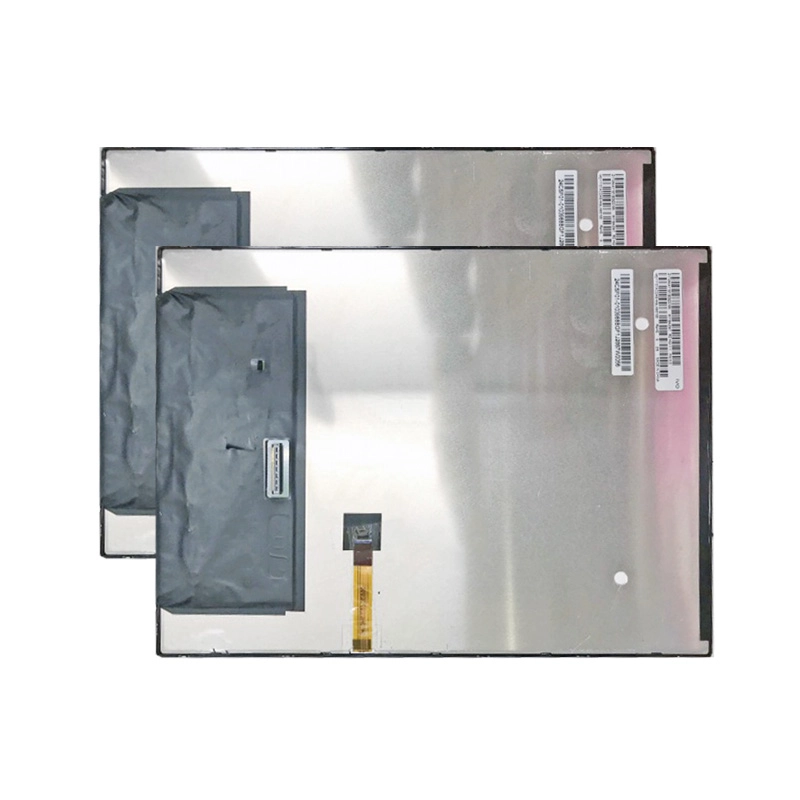

Here are the key points about this IVO M118AW41 R0 11.8 inch LCD Display :
Boasting 750 cd/m² brightness and a 1000:1 contrast ratio, it excels in direct sunlight or low-light environments.
Engineered for extreme conditions, it operates reliably from -30°C to 85°C and survives storage at -40°C~85°C.
The LVDS interface ensures stable signal transmission for mission-critical systems, while the 3.3V power supply enhances energy efficiency.
With a 30,000-hour LED lifespan and rugged 10.6mm profile (194×258.55mm outline), it’s built for 24/7 reliability in harsh industrial, medical, and outdoor applications.
IVO M118AW41 R0 11.8 inch LCD Display Application & Performance
Ideal for high-precision medical imaging, aviation control panels, and outdoor digital signage, the IVO M118AW41 R0 thrives in extreme environments. Its ultra-wide temperature range supports Arctic oil rig monitors, desert solar farms, and freezer warehouse systems. The 750cd/m² brightness ensures readability under intense sunlight for railway dashboards, EV charging stations, and construction site displays. The IPS panel’s color consistency benefits laboratory equipment, military HUDs, and marine navigation systems. With shock-resistant construction and a 30k-hour lifespan, it reduces downtime in mining, logistics, and energy sectors. Compact yet robust, it integrates into portable diagnostic tools, smart factory robots, and rugged IoT edge devices.
1
| 11.8″ Product Specifications | |||
| Diagonale Größe | 11.8 inch | Kontrastverhältnis | 1000:01:00 |
| Pixelnummer | 1200×1600 | Betriebstemperatur | -30 ~ 85 °C |
| Luminanz | 750 | Lagertemperatur | -40 ~ 85 °C |
| Modulgröße | 194×258.55×10.6 | LED-Lebensdauer | 30000 |
| Aktiver Bereich | 180×240 | Stromversorgung | 3.3V |
| Ansichtsrichtung | Ips | Touchscreen-Unterstützung | Ohne |
| Ansicht Ansicht (u {{url_placeholder_0}}) | 85/85/85/85 | Anzeige Typ | Farbe tft |
| Schnittstelle | LVDS | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
