G070Y2-L01 General Description

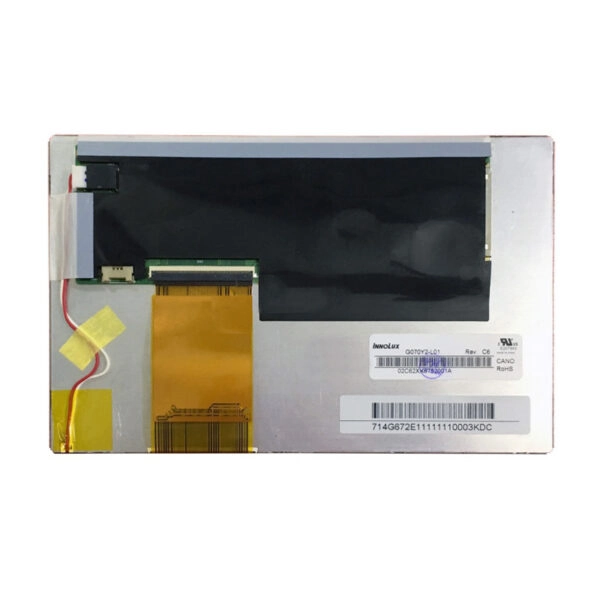

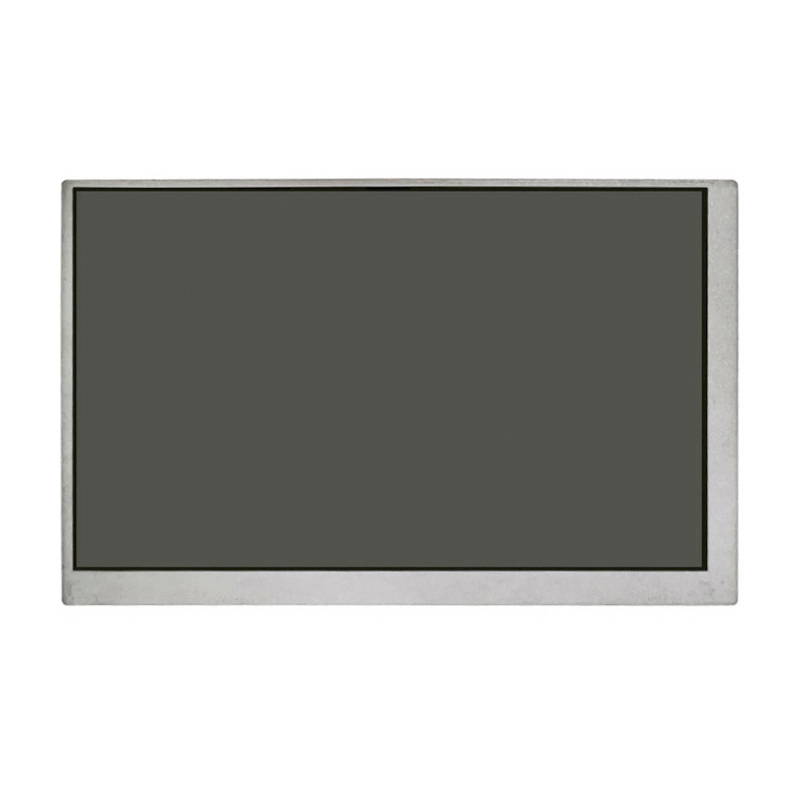

Here are the key points about this Innolux G070Y2-L01 TN Display :
Display Parameters：It features a resolution of 800×480, 500 cd/m² brightness, and a 600:1 contrast ratio, delivering crisp visibility even under direct sunlight.
Interface and Signal Transmission：The LVDS interface ensures stable signal transmission.
Operating Temperature and Lifespan：With an ultra-wide operating temperature range (-30°C to 85°C) and a 50,000-hour LED lifespan, it guarantees reliability in extreme conditions.
Dimensions and Power Consumption：The compact design (165×104×9.83 mm) and low power consumption (3.3V) make it ideal for space-constrained applications.
Features and Applications：Built without a touchscreen, this display prioritizes durability and cost-efficiency, perfect for systems requiring long-term operation without compromise.
Innolux G070Y2-L01 TN Display Application & Performance
This display excels in industrial control panels, outdoor kiosks, automotive dashboards, and medical devices. Its high brightness and 70/70/60/60 viewing angles ensure readability in harsh lighting, while the wide temperature range supports operation in freezing or high-heat environments. The ruggedized design withstands vibrations and dust, making it suitable for construction machinery, agricultural equipment, and logistics terminals. The LVDS interface minimizes electromagnetic interference, critical for precision instrumentation. With a storage temperature range of -40°C to 95°C, it maintains performance stability across global climates, backed by Innolux’s proven quality in mission-critical displays.
G070Y2-L01 General Description
| G070Y2-L01 TN TFT LCD Display Specifications | |||
| Bildschirmgröße | 7.0 inch (178mm diagonal) | Kontrastverhältnis | 600:1 (typical) |
| Auflösung | 800 × 480 pixels (WVGA) | Betriebstemperatur | -30℃ to +85℃ |
| Helligkeit | 500 cd/m² (typical) | Lagertemperatur | -40℃ to +95℃ |
| Module Dimensions | 165(W) × 104(H) × 9.83(D) mm | LED Backlight Life | 50,000 hours (minimum) |
| Aktiver Bereich | 152.4(W) × 91.44(H) mm | Touchscreen | Not included |
| Viewing Technology | Twisted Nematic (TN) | Power Requirement | 3.3V DC |
| Viewing Angles | 70° (U/D) / 60° (L/R) | Anzeige Typ | Farbe TFT LCD |
| Schnittstelle | LVDS (Low Voltage Differential Signaling) | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
