Beschreibung
8″ IPS Panels Features

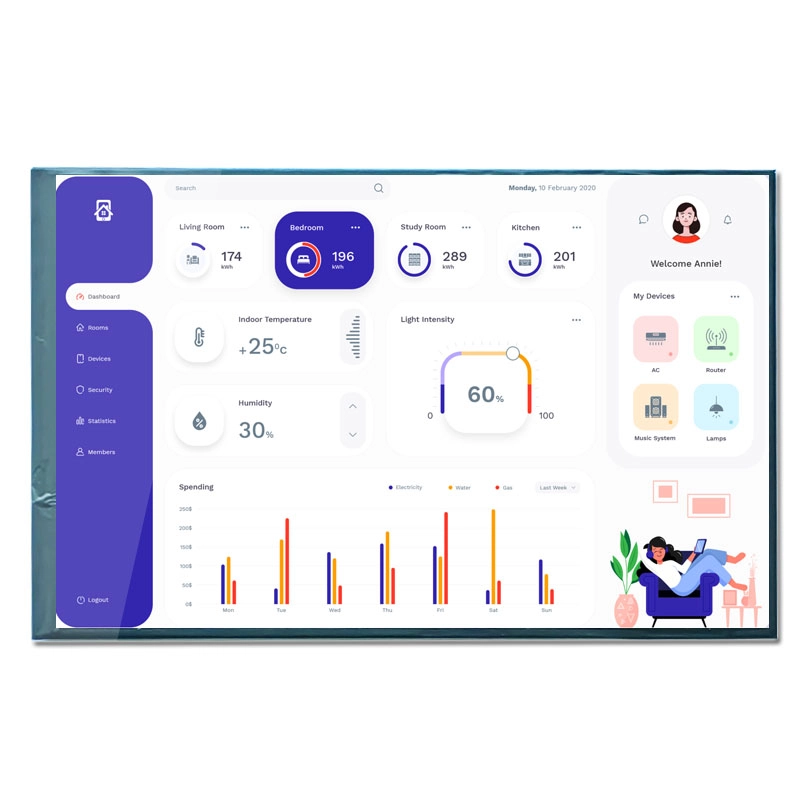

Here are the key points about this 8 inch Industrial LCD Display :
The 8 inch Industrial LCD Display features a resolution of 800×1280 pixels, making it suitable for a range of consumer electronics and industrial applications.

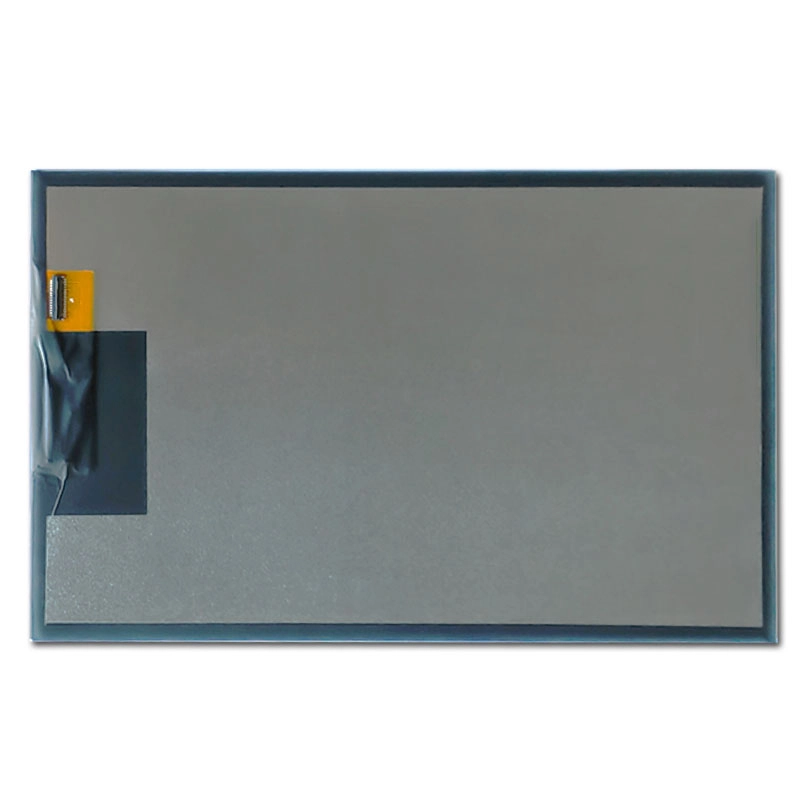

It has an active area of 107.64mm x 172.22mm and compact dimensions of 114.6mm x 184.1mm x 2.6mm, enabling easy integration into device designs.
The display offers an 80° viewing angle for consistent image quality and a brightness level of 350 cd/m² for excellent visibility in various lighting conditions.
With a contrast ratio of 1200, it enhances content clarity.
Wide Application for 8″ IPS LCD Panel
The display panel is highly versatile and well-suited for various applications across multiple industries. In industrial settings, it can be integrated into control panels and automation systems, providing operators with clear, real-time information for effective monitoring and control. In embedded systems, including point-of-sale systems that require user-friendly interfaces for transactions and smart home devices that enable intuitive control over home systems like lighting and security. Its robust features make it a reliable choice for both consumer and industrial applications.
8.0″ TFT-LCD Specifications
| 8.0″ TFT-LCD Display Specifications | |||
| Modellnummer | 90-08004-BS1 | Betriebstemperatur | -20℃ to +70℃ |
| Display Size | 8.0″ (diagonal) | Lagertemperatur | -30℃ to +80℃ |
| Auflösung | 800 × 1280 (WXGA) | Backlight Lifetime | 20.000 Stunden |
| Module Dimensions | 114.6 × 184.1 × 2.6 mm | Touchscreen | Not included |
| Aktiver Bereich | 107,64 × 172,22 mm | Kontrastverhältnis | 1200:1 |
| Helligkeit | 350 cd/m² (typical) | Stromversorgung | 3.3V DC ±5% |
| Schnittstelle | MIPI DSI (4-lane) | Anzeige Typ | Farb-TFT-LCD |
| Blickwinkel | 80°/80°/80°/80° (L/R/U/D) | Seitenverhältnis | 16:10 (wide) |
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
