Beschreibung
7″ Amoled Displays Features

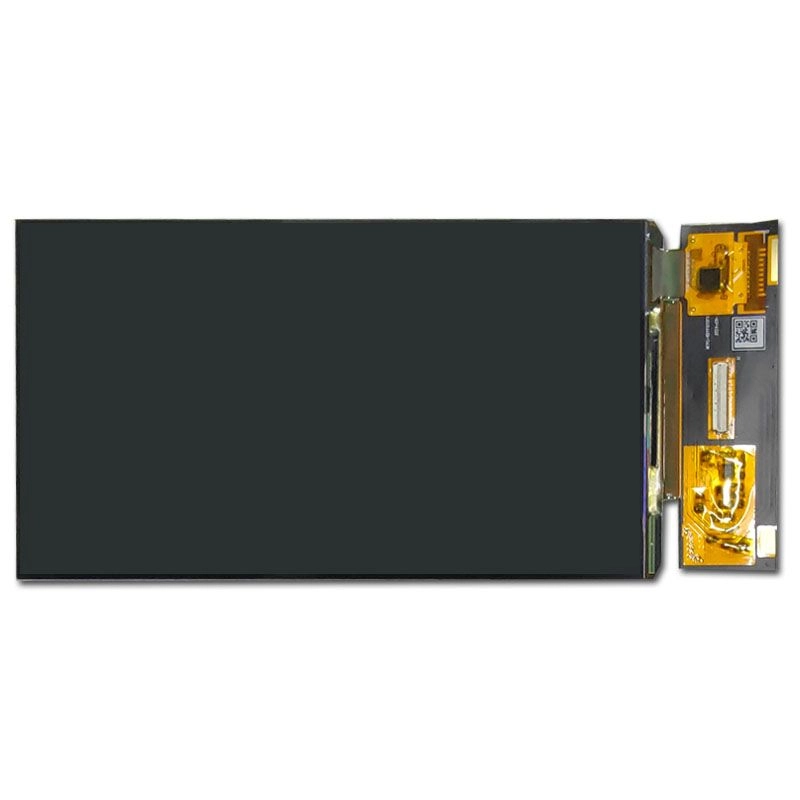

Here are the key points about this 7 inch Industrial OLED Display :
The 7 inch Industrial OLED Display panel features a spacious viewing area with a diagonal measurement of 7.0 inches, making it suitable for a variety of applications.
It offers a pixel resolution of 1080 x 1920, delivering sharp and clear images ideal for high-definition content.
The display supports ALL O’clock viewing directions, ensuring visibility from multiple angles without color distortion.
With a high contrast ratio of 100,000, it provides exceptional depth and detail, enhancing the overall visual experience.
Additionally, the typical luminance of 600 cd/m² ensures good visibility even in bright lighting conditions.
7″ Amoled Display Application
This 7 inch OLED display panel is versatile and well-suited for consumer electronics, such as tablets and e-readers, where high resolution and vibrant display quality enhance the user experience. It is also ideal for automotive applications, including dashboard and infotainment systems, where high-quality visuals are essential for navigation, entertainment, and information. Additionally, the display can be integrated into industrial devices, providing clear visuals and touch interaction for control panels and monitoring tasks. Furthermore, it is perfect for medical devices, particularly portable medical equipment, requiring high-quality visuals and reliability across various environmental conditions.

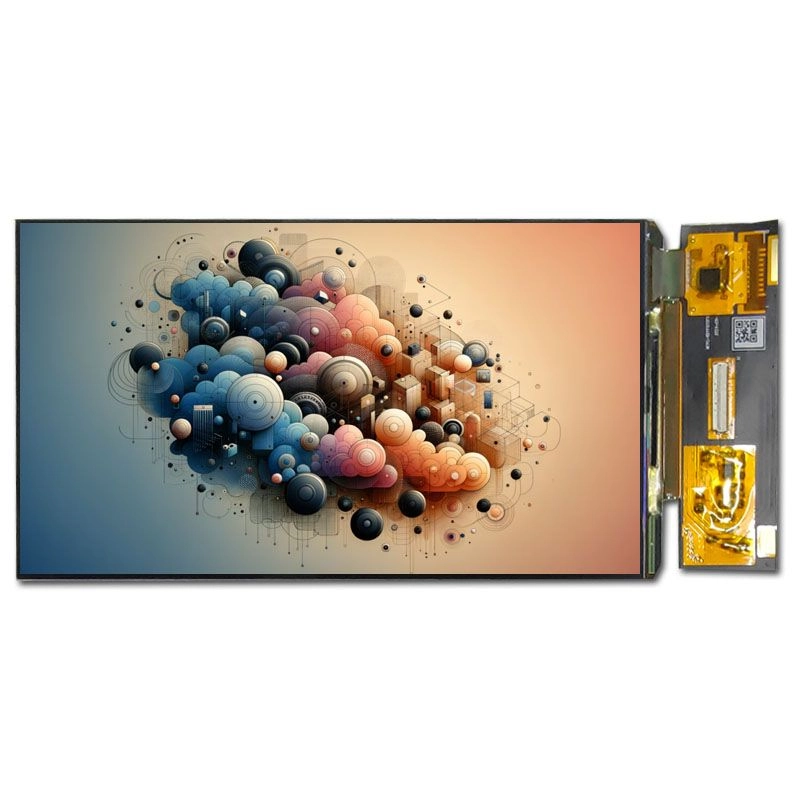

7″ Amoled Screen Display
| 7″ Amoled Screen Display | |||
| LCD-Größe (Zoll) | 7(Diagonal) | View direction | ALLE |
| Anzahl der Pixel | 1080(h)*1920(v) | Stromversorgung | 3.3v |
| Pixel Pitch(um) | 80.5 | Kontrastverhältnis | 100000 |
| Umriss Dimension | 89.04(W) ×161.11(H) ×0.822(D) | Betriebstemperatur | -30℃~85℃ |
| Aktiver Bereich | 86.94(H) ×154.56(V) | Luminanz | 600(TYP.) |
| Art der Anzeige | Amoliert | Treiber IC | RM692C9 |
| Schnittstelle | MI PI | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
