Beschreibung

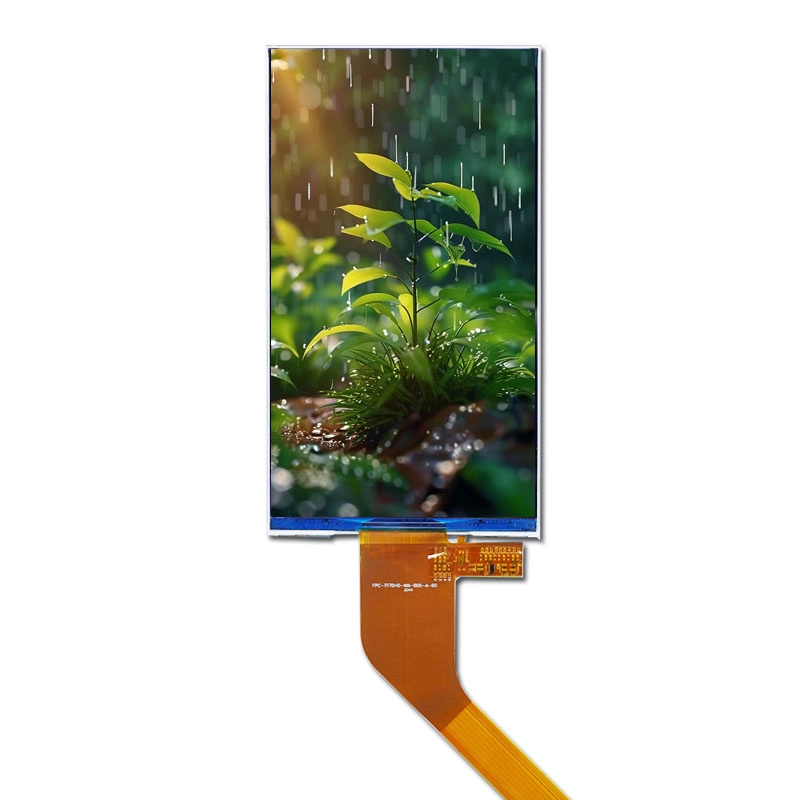

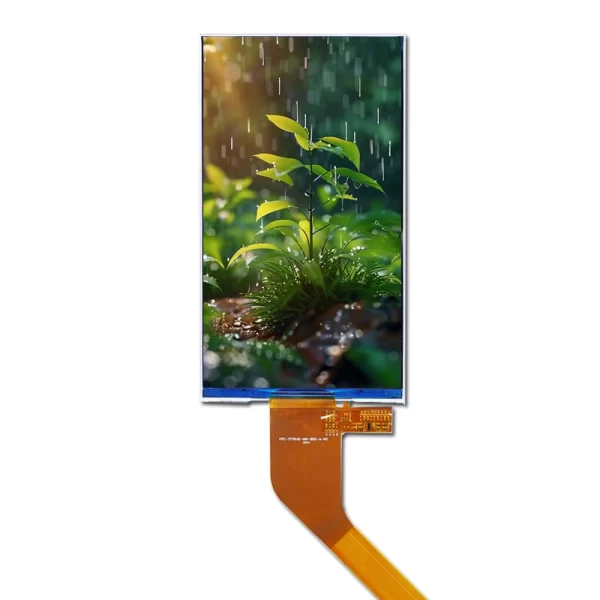

7″ TFT LCD Panel Features
Here are the key points about this 7 inch Industrial LCD Display :
The 7 inch Industrial LCD Display offers an 80° viewing angle in all directions for consistent image quality, along with a brightness level of 300 cd/m² for adequate visibility in diverse lighting conditions.
The LED backlight is rated for 20,000 hours, and the contrast ratio of 800 enhances content clarity and vibrancy.
Operating efficiently within a temperature range of -20°C to 70°C and utilizing a 24-pin MIPI interface, this module ensures reliable performance and seamless integration with modern technology.
Color Depth of the 7″ TFT LCD Panel
The 7 inch TFT-LCD display offers a robust color gamut with support for 16.7 million colors, significant coverage of the sRGB color space, and high color accuracy. Its high contrast ratio and brightness levels enhance color vibrancy, while wide viewing angles ensure consistent color reproduction from multiple perspectives, making it ideal for a range of applications requiring precise and vibrant visuals.
7.0″ TFT-LCD Specifications
| 7.0″ TFT-LCD Display Specifications | |||

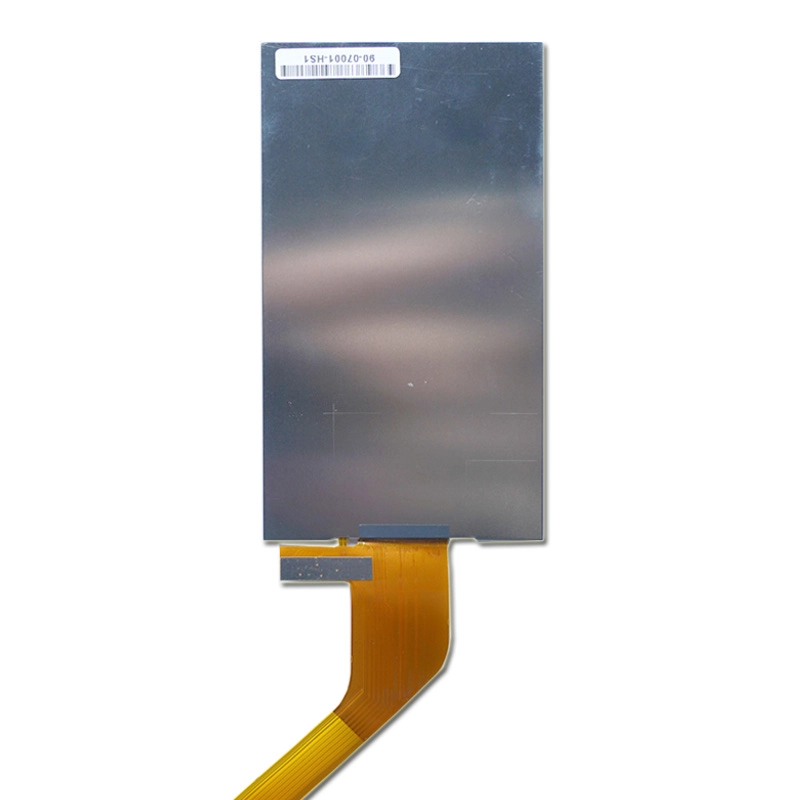

| Modellnummer | 90-07001-HS1 | Betriebstemperatur | -20℃ to +70℃ |
| Display Size | 7.0″ (diagonal) | Lagertemperatur | -30℃ to +80℃ |
| Auflösung | 1024 × 600 (WSVGA) | Backlight Lifetime | 20.000 Stunden |

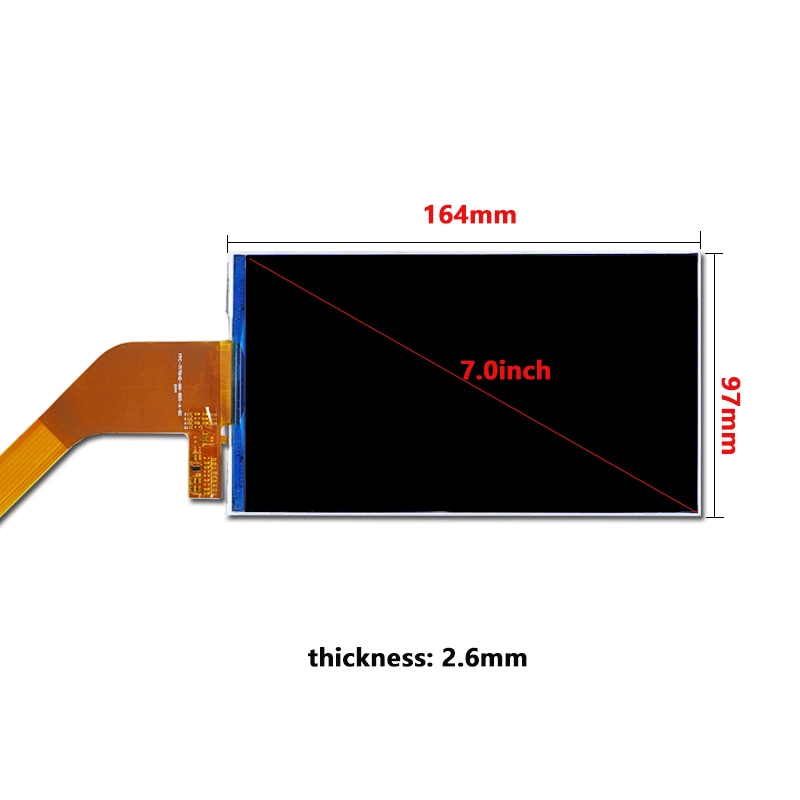

| Module Dimensions | 164.0 × 97.0 × 2.6 mm | Touchscreen | Not included |
| Aktiver Bereich | 154,21 × 85,92 mm | Kontrastverhältnis | 800:1 |
| Helligkeit | 300 cd/m² (typical) | Stromversorgung | 3.3V DC ±5% |
| Schnittstelle | MIPI DSI (4-lane) | Anzeige Typ | Farb-TFT-LCD |
| Blickwinkel | 80°/80°/80°/80° (L/R/U/D) | Seitenverhältnis | 16:9 (wide) |
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
