7″ Raspberry Pi Touch Screen
The 7″ Raspberry Pi Touch Screen Capacitive touch screen, can support 5-point touch
- Supports individual backlight control, can turn off backlight to save power
- Supports standard HDMI interface input, compatible and can be directly inserted into Raspberry Pi (3rd generation, 2nd generation, 1st generation)
- Can be used as a general HDMI display, such as connecting to computer HDMI as a secondary display (resolution output can be adjusted to 800X480)
- Used as a Raspberry Pi display, supports Raspbian, Ubuntu, Kodi, win10 IOT, single-point touch, driver-free
- Used as a computer monitor, supports win7, win8, win10 system 5-point touch (XP and older system single-point touch), driver-free
- This product is CE and RoHS certified
Package include:
- 7-inch HDMI Display x1
- HDMI cable x1
- USB cable x1
- Copper pillar package (4 PCS) x1
- Data CD (or network disk)
- Warranty: 3 months

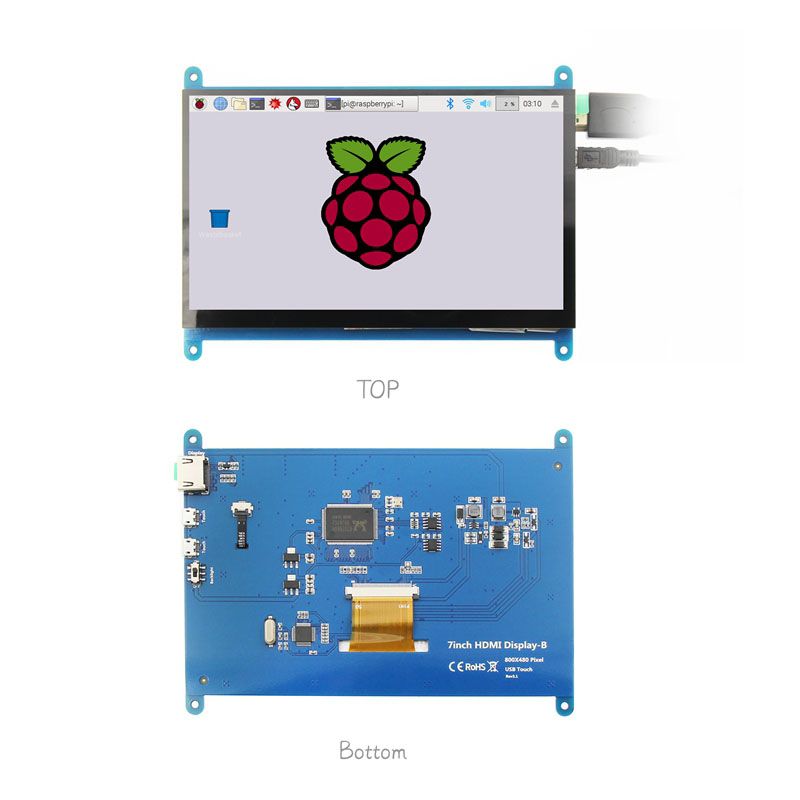

7 inch Raspberry Pi Touch Screen Hardware Description
①Backlight button:Backlight power switch, control the backlight on and off to save power.
②&③Touch:USB touch/power supply interface, used for power supply and touch output, both functions are the same, just connect any one
④Display :HDMI interface, used to connect the mainboard and LCD display for HDMI transmission.
Kontaktieren Sie uns to get the best price and solution.
| 7″ Raspberry Pi Touch Screen | |||
| Größe | 7″ (inch) | Aktiver Bereich | 153.84 × 85.63 (mm) |
| SKU | DS20196 | Abmessungen | 164.9 × 124.27 (mm) |
| Physical resolution | 800×480 (dots) | Packaging size | 211 × 150 × 53 (mm) |
| Software adjustable resolution | 800×480~1920×1080 (dots) | Stromverbrauch | 0.74A @ 5V |
| Berühren | 5-point capacitive touch screen | Gewicht (einschließlich Verpackung) | 405 g |
