Beschreibung

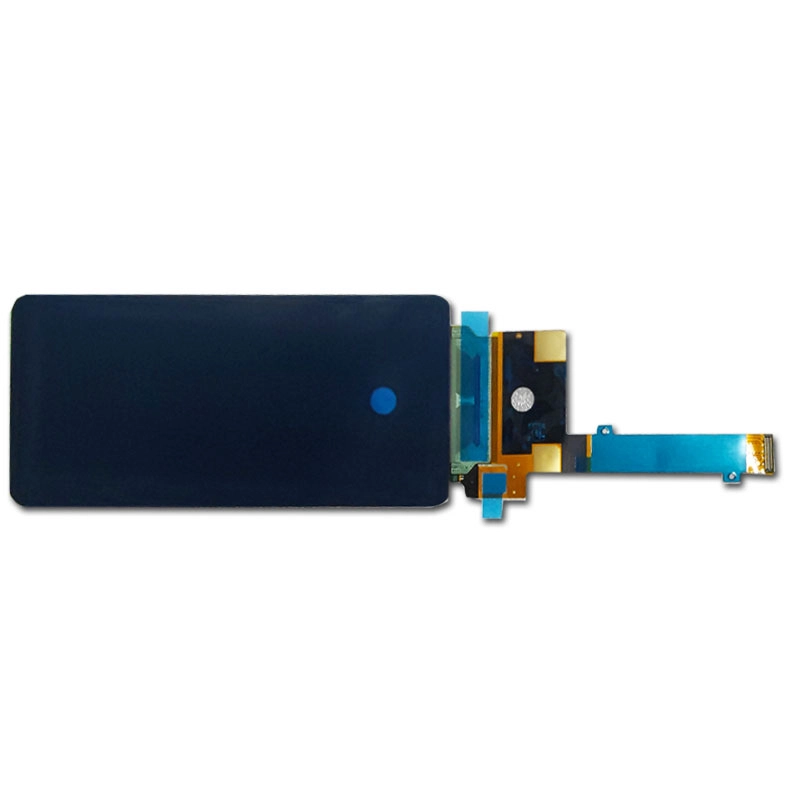

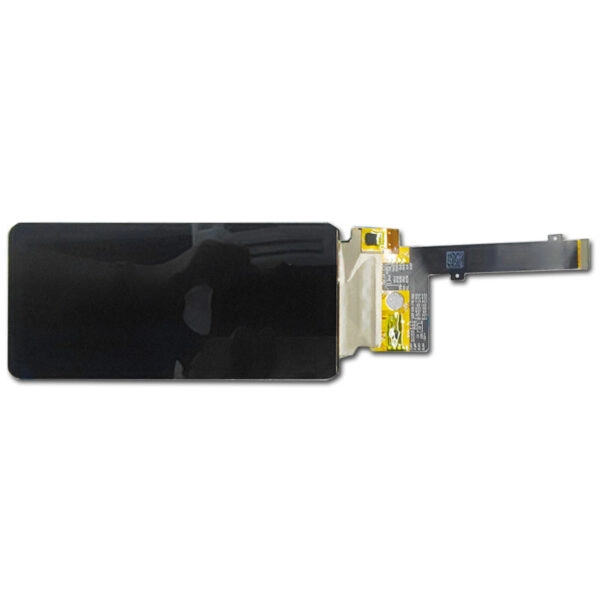

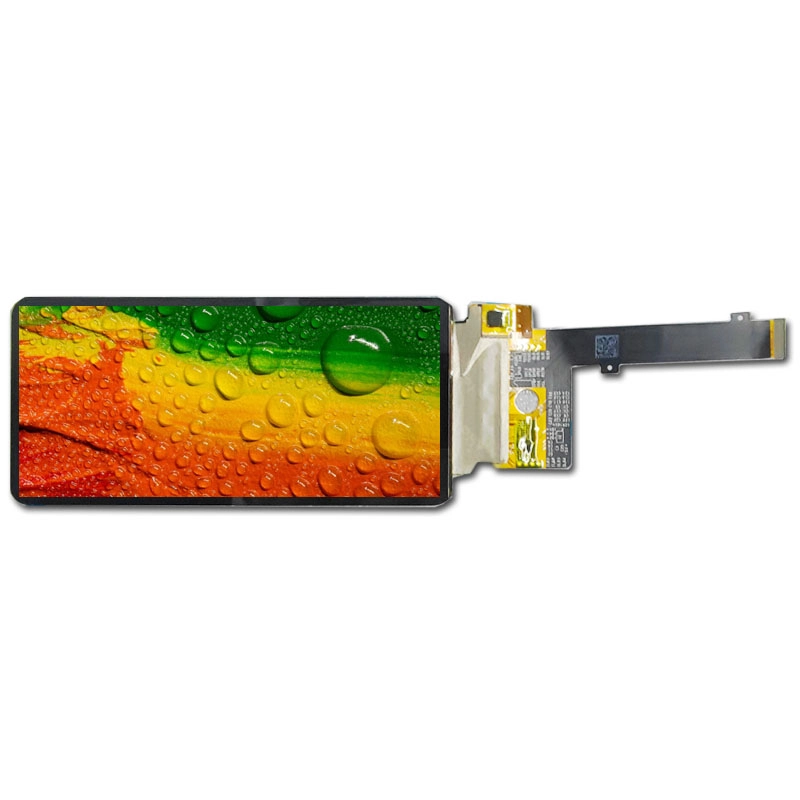

6.39″ Amoled Displays Features
Here are the key points about this 6.39 inch Amoled Display :
The 6.39 inch Amoled Display features a sizable viewing area, measuring diagonally at 6.39 inches, making it suitable for various applications.
It offers a pixel resolution of 1080 x 2340, delivering sharp and detailed visuals ideal for high-definition content.
The display utilizes a MIPI interface, enabling high-speed communication with microcontrollers and processors.
With an impressive contrast ratio of 100,000, it provides exceptional depth and detail, enhancing the overall visual experience.
Additionally, the typical luminance of 430 cd/m² ensures good visibility across different lighting conditions.
6.39″ Amoled Display Application
This display is ideal for automotive applications, including dashboard and infotainment systems, where high-quality visuals are essential for navigation, entertainment, and information systems. It can also be seamlessly integrated into industrial devices, serving effectively in control panels and interfaces to provide clear visuals and touch interaction for monitoring and control tasks. Additionally, the display is well-suited for embedded systems and various custom electronics projects that require a high-quality display with interactive features, making it a versatile choice for a wide range of applications.
6.39″ Amoled Screen Display
| 6.39″ AMOLED Screen Display Specifications | |||
| Display Size | 6.39 inch (diagonal) | Blickwinkel | Wide View (All directions) |
| Auflösung | 1080 × 2340 (FHD+) | Stromversorgung | 3.3V ±5% |
| Pixel -Tonhöhe | 31.5 (H) × 63 (V) μm | Kontrastverhältnis | 100,000:1 (typical) |
| Module Dimensions | 69.84 (W) × 150.42 (H) × 0.643 (D) mm | Betriebstemperatur | -20°C to +70°C |
| Aktiver Bereich | 68.04 (H) × 147.42 (V) mm | Helligkeit | 430 cd/m² (typical) |
| Display -Technologie | AMOLED (Active Matrix OLED) | Treiber IC | RM692C9 |
| Schnittstelle | MIPI (Schnittstelle für mobile Industrieprozessoren) | Pixel Density | ≈403 PPI |
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
