Beschreibung
6.01″ Amoled Displays Features
Here are the key points about this 6.01 inch Oled Touch Display :
The 6.01 inch Oled Touch Display features a touch screen, providing a larger viewing area suitable for various applications.
It utilizes AMOLED technology, known for its vibrant colors, high contrast ratios, and deep blacks.
The display employs Active Matrix TFT technology for efficient pixel control, ensuring high-quality visuals.
With a resolution of 1080 x 2160 pixels, it delivers sharp and detailed images, ideal for high-definition content.
We use the CH13721C driver IC to drive the display, optimize it for AMOLED displays, and equip it with the FT3519 touch IC for accurate and responsive touch inputs.
Additionally, it supports a frame rate of 60Hz, providing smooth motion and transitions in displayed content.
6.01″ Amoled Display Application
This Oled touch display is well-suited for automotive applications, including dashboard and infotainment systems, where high-quality visuals are essential for navigation, entertainment, and information systems. It can also be integrated into industrial devices, functioning effectively in control panels and interfaces to provide clear visuals and touch interaction for monitoring and control tasks. Additionally, the display is ideal for embedded systems and various custom electronics projects that require a high-quality display with interactive features, making it a versatile choice for a range of applications.

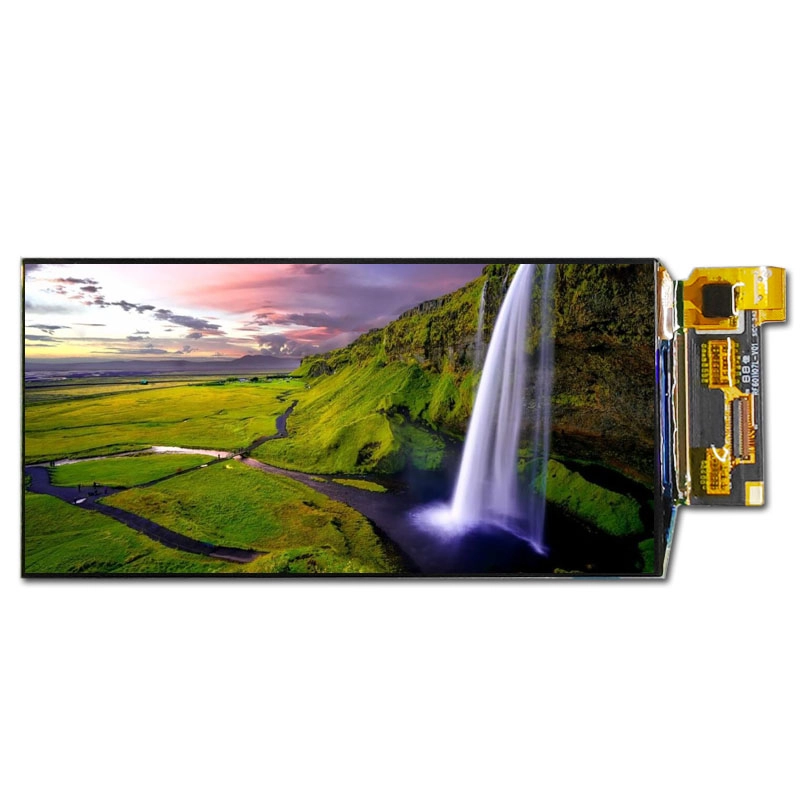

6.01″ Amoled Screen Display
| 6.01″ Amoled Screen Display | |||
| LCD-Größe (Zoll) | 6.01(Diagonal) | View direction | ALLE |
| Anzahl der Pixel | 1080(h)*2160(v) | Drive IC | CH13721C |
| Pixel Pitch(um) | 63.2(H)X63.2(V) | Touch IC | FT3519 |
| Umriss Dimension | 70.066(W) ×142.297(H) ×1.08(D) | TP | -20 ℃ ~ 70 ℃ |
| Aktiver Bereich | 68.256(H) ×136.512(V) | Frame Rate | 60(HZ) |
| Technology Type | LTPS | Farbtiefe | 16.7M |
| Schnittstelle | MI PI 4 Line | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
