4.97″ Amoled Screen Display Key Features
4.97 inch AMOLED Screen , designed to deliver sharp visuals and robust performance. Boasting HD+ resolution (720×1280) and 20,000:1 contrast ratio, this display offers vivid colors and deep blacks, enhanced by 400nits brightness for readability in diverse lighting conditions.
MIPI Interface: High-speed data transfer for smooth integration with modern hardware.
Extended Temperature Range: Stable operation from -20°C to 60°C, suitable for industrial, medical, and consumer electronics.
Full Viewing Angle: Consistent image quality from any angle, ideal for interactive displays.
Energy Efficiency: AMOLED technology minimizes power consumption without compromising brightness or color accuracy.
4.97 inch AMOLED Screen Display Applications
Optimized for wearables, portable IoT devices, handheld scanners, and smart home panels requiring compact size and reliable performance.
- Rugged design for harsh environments
- Factory-tested durability and longevity
- Support custom configurations (contact for OEM/ODM solutions)

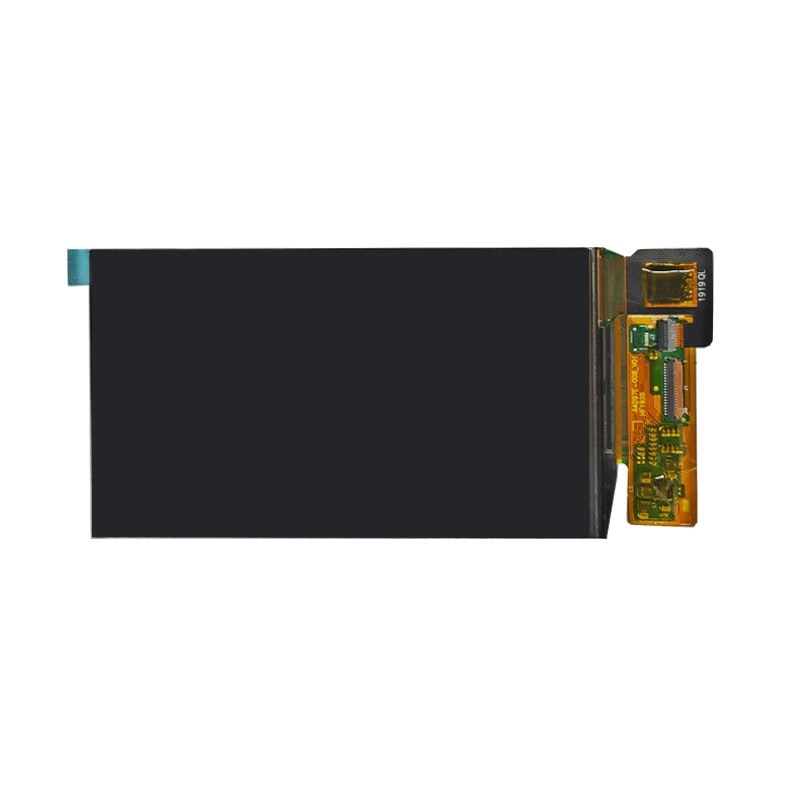

4.97″ Amoled Screen Display
| 4.97″ AMOLED Screen Display Specifications | |||
| Display Size | 4.97 inch (diagonal) | Schnittstelle | MIPI (Schnittstelle für mobile Industrieprozessoren) |
| Auflösung | 720 × 1280 (HD) | Blickwinkel | Wide View (All directions) |
| Pixel -Tonhöhe | 61.884 (H) × 110.016 (V) μm | Stromversorgung | 3.3V ±5% |
| Module Dimensions | 64.12 (W) × 116.72 (H) × 0.84 (D) mm | Helligkeit | 350 cd/m² (typical) |
| Aktiver Bereich | 38.207 × 38,207 mm | Treiber IC | RM67295 |
| Display -Technologie | AMOLED (Active Matrix OLED) | Pixel Density | ≈300 PPI |
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
