Beschreibung

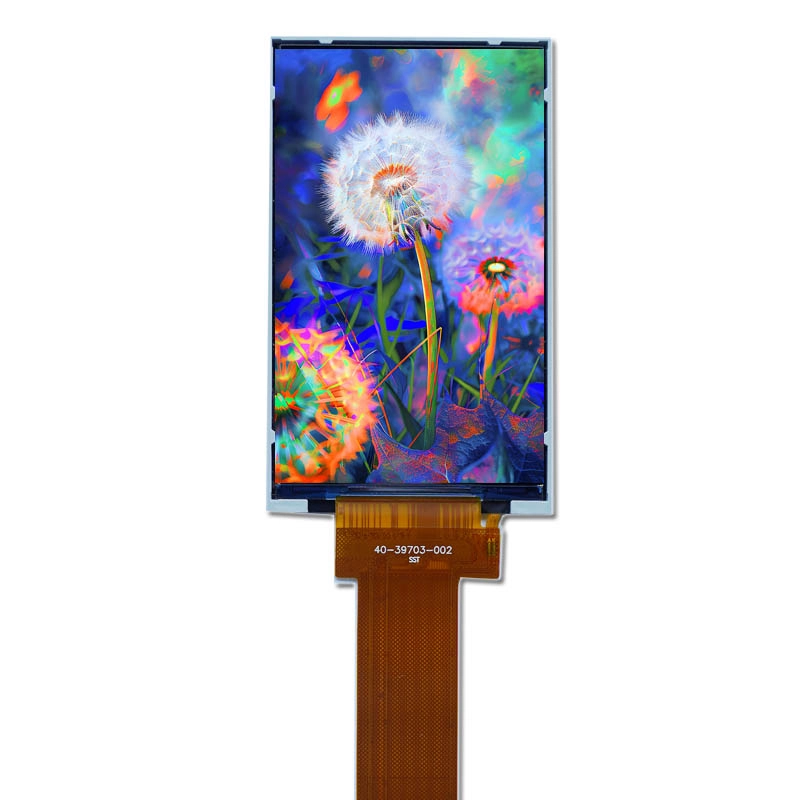

3.97″ Colour TFT Displays Features
Here are the key points about this 3.97 inch IPS Industrial LCD Screen :
- The 3.97 inch IPS Industrial LCD Screen features a resolution of 480×800 pixels, making it ideal for applications that require high-quality and detailed imagery.

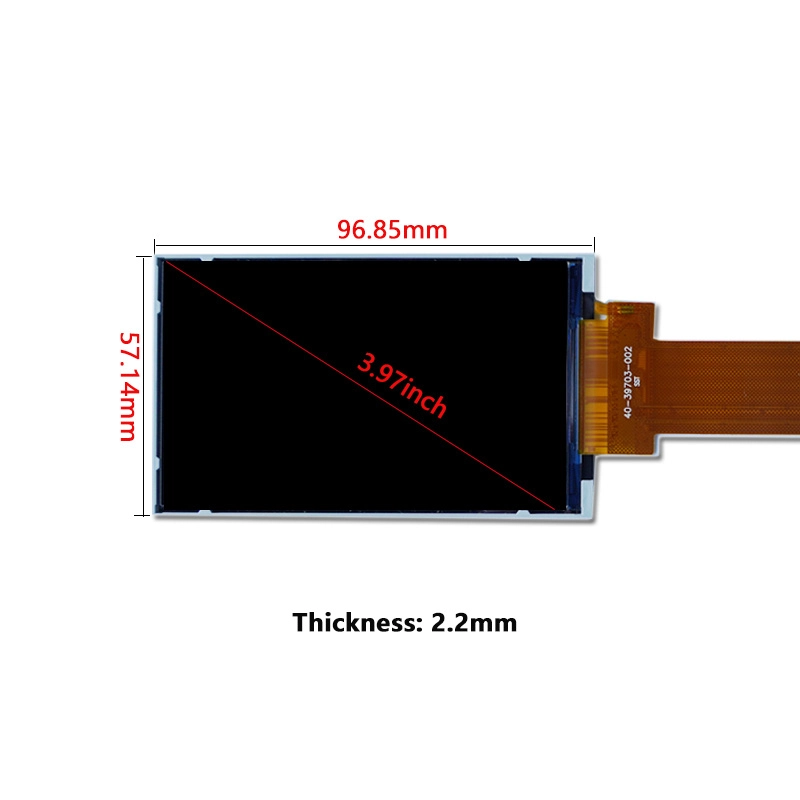

- With an active area of 51.84mm x 86.4mm and compact overall dimensions of 57.14mm x 96.85mm x 2.2mm, it integrates seamlessly into various device designs.
- The display offers an 80° viewing angle in all directions, ensuring consistent image quality and color accuracy.
3.97″ LCD Panel with IPS Technology
The 3.97-inch TFT-LCD display module features In-Plane Switching (IPS) technology, which enhances viewing angles and color reproduction compared to traditional TFT displays.
In IPS displays, liquid crystals are aligned parallel to the glass substrates, allowing them to rotate in the same plane under an electric field, which improves light transmission and color accuracy.
This arrangement results in wide viewing angles of up to 178° both horizontally and vertically, ensuring that images remain clear and colors consistent from multiple perspectives.
3.97″ TFT-LCD Product Specifications
| 3.97″ TFT-LCD Product Specifications | |||

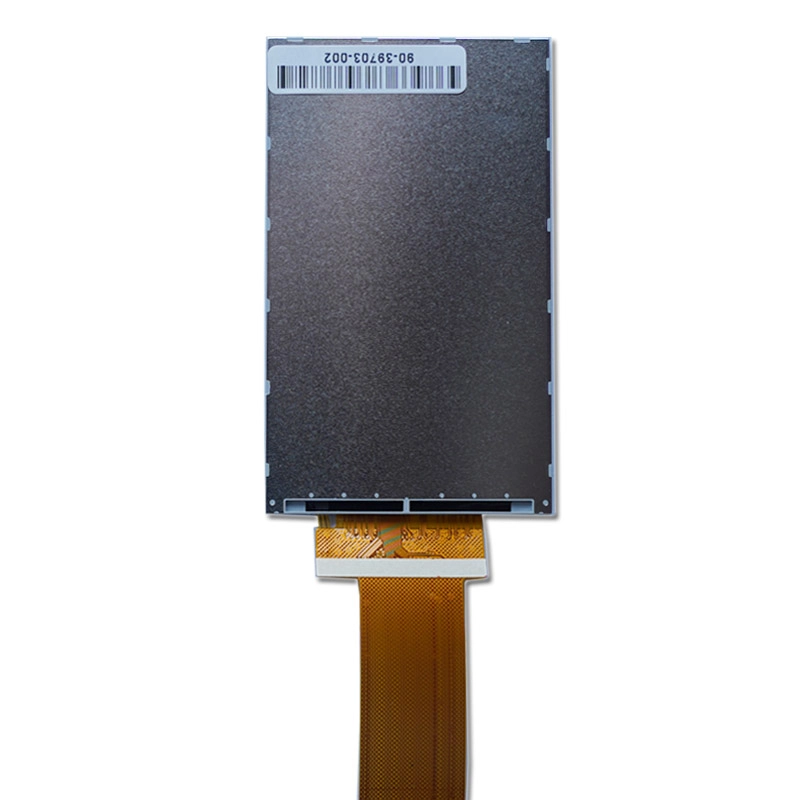

| Modellnummer | 90-39703-002 | Betriebstemperatur | -20℃ to +70℃ |
| Display Size | 3.97″ (diagonal) | Lagertemperatur | -30℃ to +80℃ |
| Auflösung | 480 × 800 (WVGA) | LED-Lebensdauer | 20.000 Stunden |
| Module Dimensions | 57.14 × 96.85 × 2.2 mm | Touchscreen | Not included |
| Aktiver Bereich | 51.84 × 86.4 mm | Kontrastverhältnis | 800:1 |
| Helligkeit | 400 cd/m² | Stromversorgung | 3.3V DC |
| Schnittstelle | RGB 24-bit | Anzeige Typ | Farb-TFT-LCD |
| Blickwinkel | All directions | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
