3.92″ Amoled Displays Features
Here are the key points about this 3.92 inch Amoled Touch Display :

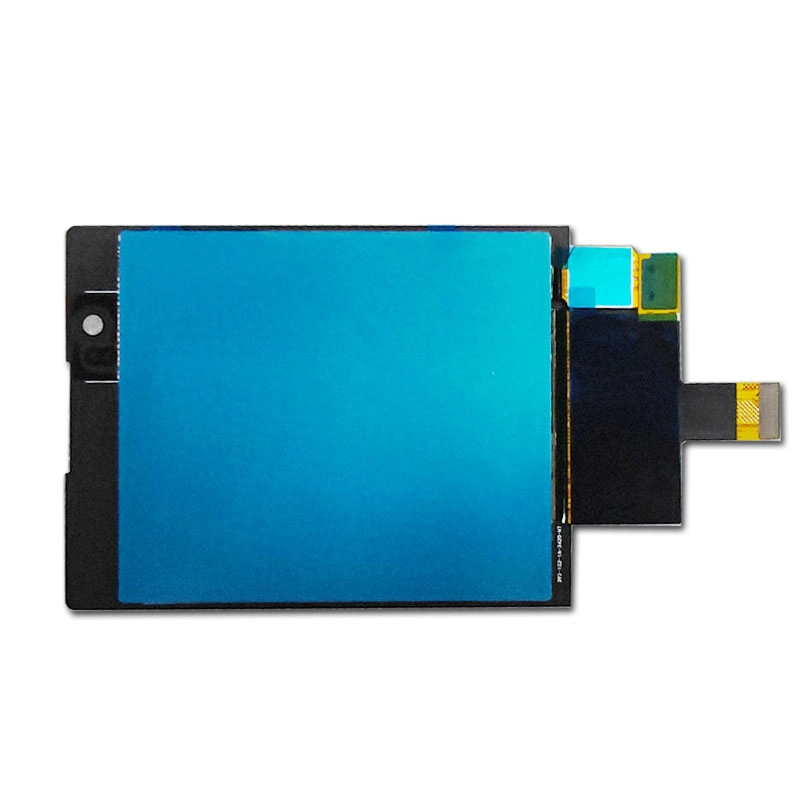

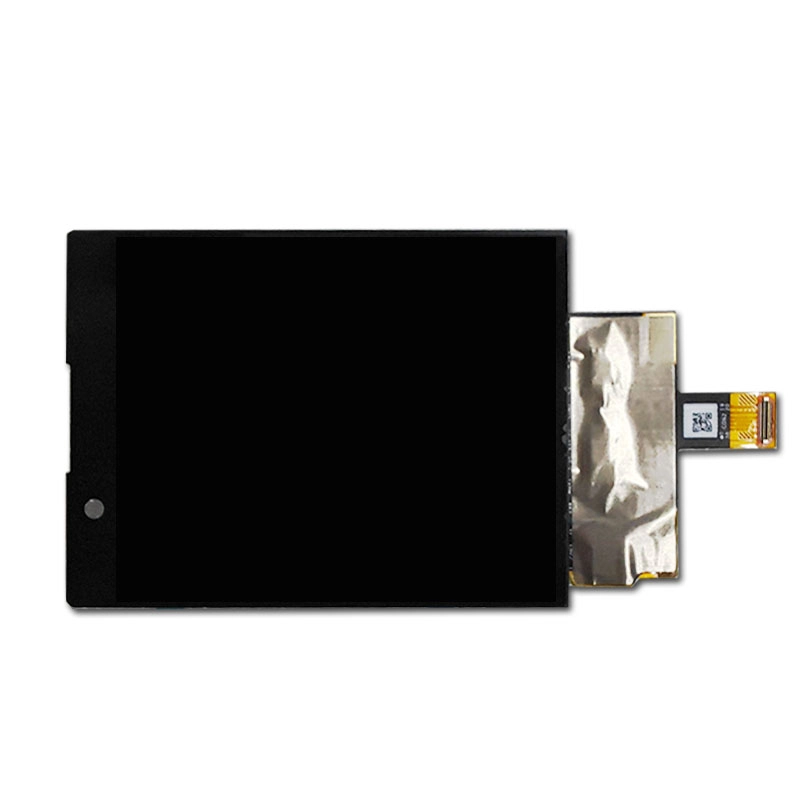

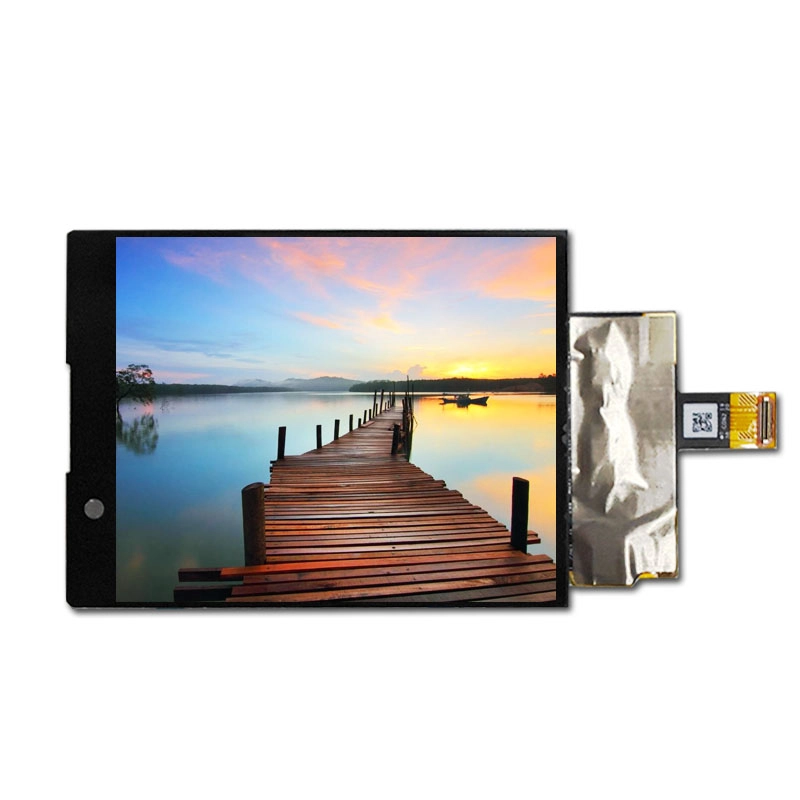

This is a 3.92 inch Amoled Touch Display , featuring 3.92 inch AMOLED technology, renowned for its vibrant colors and deep blacks.
It employs Active Matrix TFT technology for efficient pixel control and high-quality visuals.
With a resolution of 1080 x 1240 pixels, the display delivers sharp and clear images, making it suitable for detailed content.
The polarizer is treated with an HC 2H finish, enhancing both durability and visibility.
Additionally, the module includes a Touch Panel (TP), enabling interactive applications for a more engaging user experience.
3.92″ Amoled Display Application
This 3.92 inch amoled touch display is ideal for wearable technology, such as smartwatches and fitness trackers, where a small, high-resolution touch display is essential for user interfaces. It is also well-suited for industrial devices, including control panels and interfaces, providing clear visuals and touch interaction for monitoring and control tasks within industrial control systems. Additionally, the display is perfect for embedded systems and custom electronics projects, making it a versatile choice for various custom applications that require a compact, high-quality display with interactive features.
3.92″ Amoled Display Specifications
| 3.92″ AMOLED Display Specifications | |||
| Display Size | 3.92 inch (diagonal) | Blickwinkel | Wide View (All directions) |
| Auflösung | 1080 (H) × 1240 (V) | Treiber IC | CH13726A |
| Pixel -Tonhöhe | 84 × 84 μm | Touch Controller | FT3519 |
| Module Dimensions | 93.1 (W) × 69.3 (H) × 1.65 (D) mm | Touch Panel Temp Range | -20°C to +70°C |
| Aktiver Bereich | 65.448 (H) × 75.144 (V) mm | Aktualisierungsrate | 60 Hz |
| Panel Technology | LTPS AMOLED | Pixel Density | ~400 PPI |
| Schnittstelle | MIPI (4-Spur) | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
