3.5″ IPS TFT LCD Display

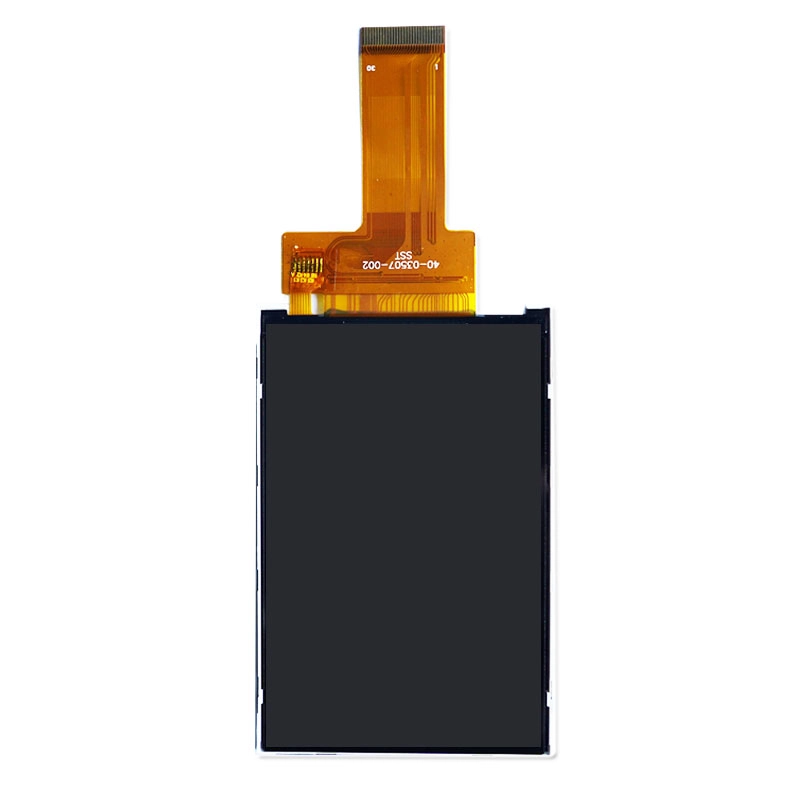

Here are the key points about this 3.5 inch TFT LCD Module :
The 3.5 inch TFT LCD Module features a resolution of 320×480 pixels, making it ideal for a variety of applications that require compact, high-quality visuals.

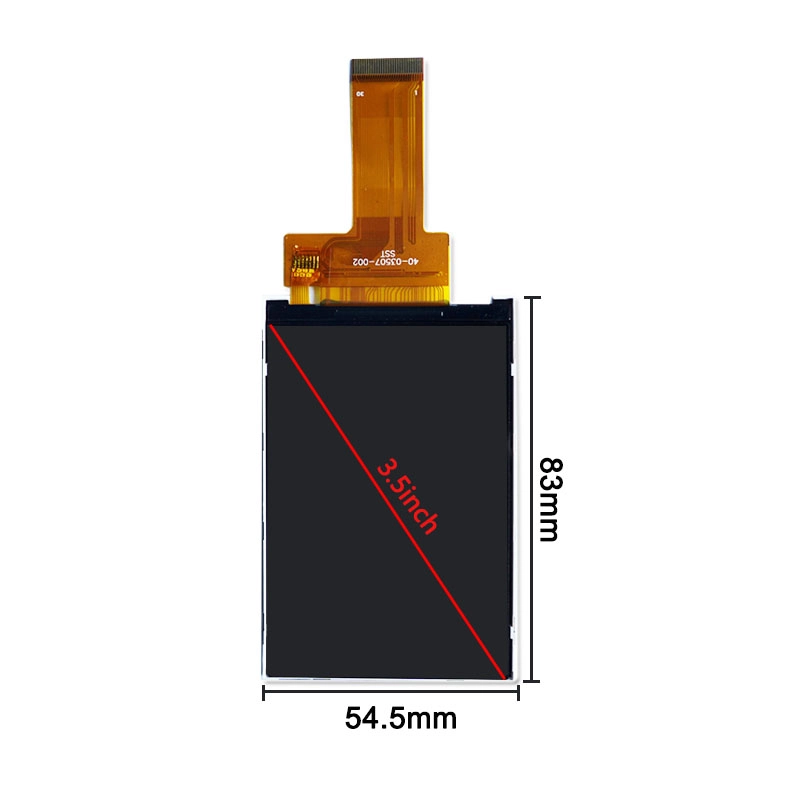

The active area measures 48.96mm x 73.44mm, while the overall dimensions are 54.5mm x 83mm x 2.25mm, ensuring easy integration into device designs.
With a wide viewing angle of 80° in all directions, it maintains consistent image quality and color accuracy.
The display’s 500 cd/m² brightness ensures excellent visibility in various lighting conditions, and the LED backlight is rated for 20,000 hours of use.
A high contrast ratio of 1000 enhances clarity and vibrancy, crucial for precise visual output.
Operating efficiently within a temperature range of -20°C to 70°C and compatible with an MCU interface, this module facilitates seamless integration with modern microcontrollers, making it versatile for diverse environments.

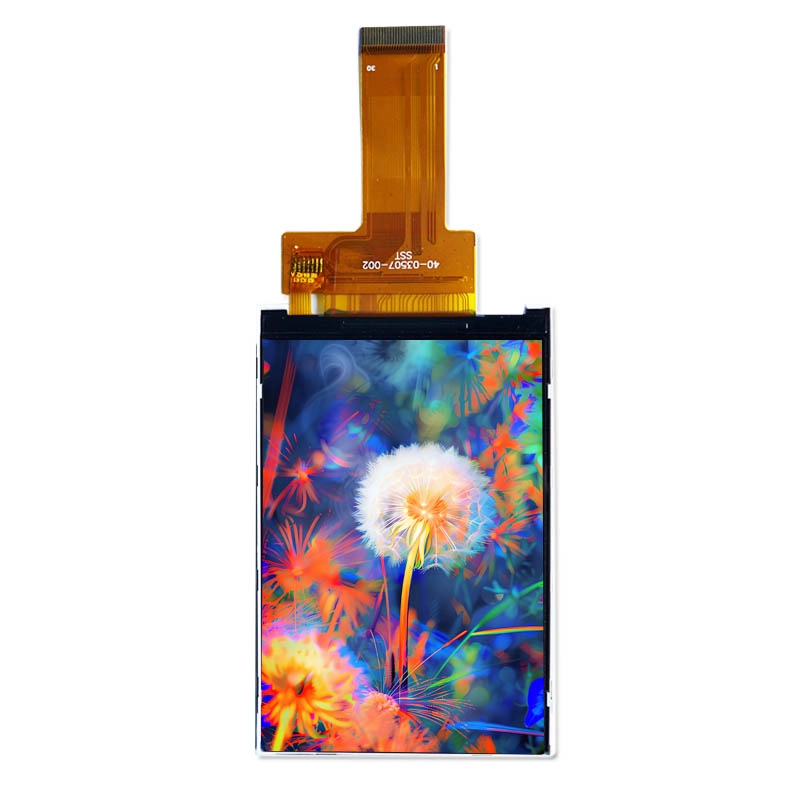

High Brightness TFT Display
The 500 cd/m² brightness of the display ensures excellent visibility even in bright ambient light conditions, making it ideal for outdoor applications where glare can hinder readability. This higher brightness level enhances the user experience by making content easier to read and interact with, reducing eye strain during prolonged use, which is particularly beneficial for navigation systems, handheld devices, and industrial displays. Additionally, increased brightness improves the perception of color depth and vibrancy, resulting in more vivid and lifelike images, which is crucial for applications in graphic design, gaming, and multimedia where color accuracy is paramount.
3.5″ TFT-LCD Product Specifications
| 3.5″ TFT-LCD Product Specifications | |||

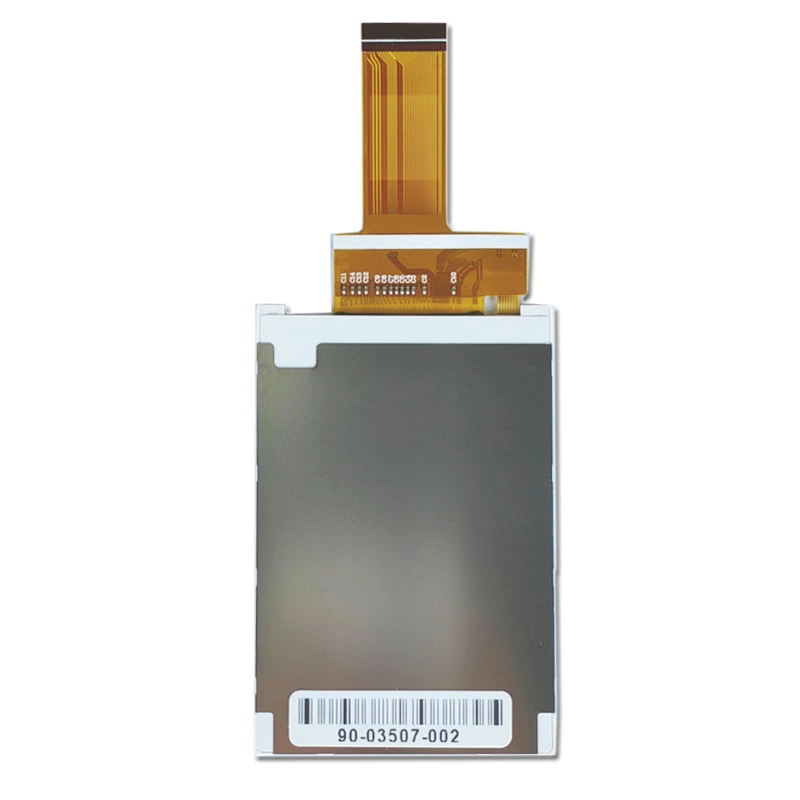

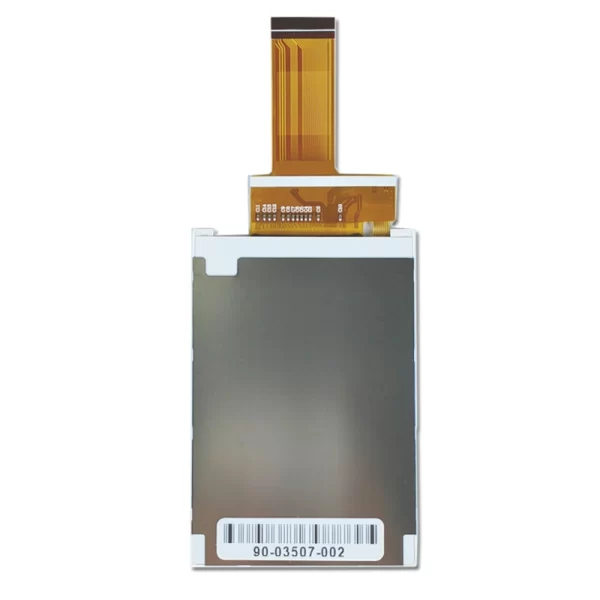

| Modellnummer | 90-03507-001 | Betriebstemperatur | -20 ~ 70 ℃ |
| Größe | 3.5″ | Lagertemperatur | -30 ~ 80 ℃ |
| Auflösung | 320×480 | LED-Lebensdauer | 20.000 Stunden |
| Umriss Dimension | 54.5×83.2×2.25 mm | Touchscreen-Unterstützung | Ohne |
| Aktiver Bereich | 48.96×73.44 mm | Kontrastverhältnis | 1000:1 |
| Helligkeit(cd/m²) | 500 | Stromversorgung | 3.3V |
| Schnittstelle | MCU | Anzeige Typ | Farb-LCD |
| Ansicht Richtung | ALLE | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
