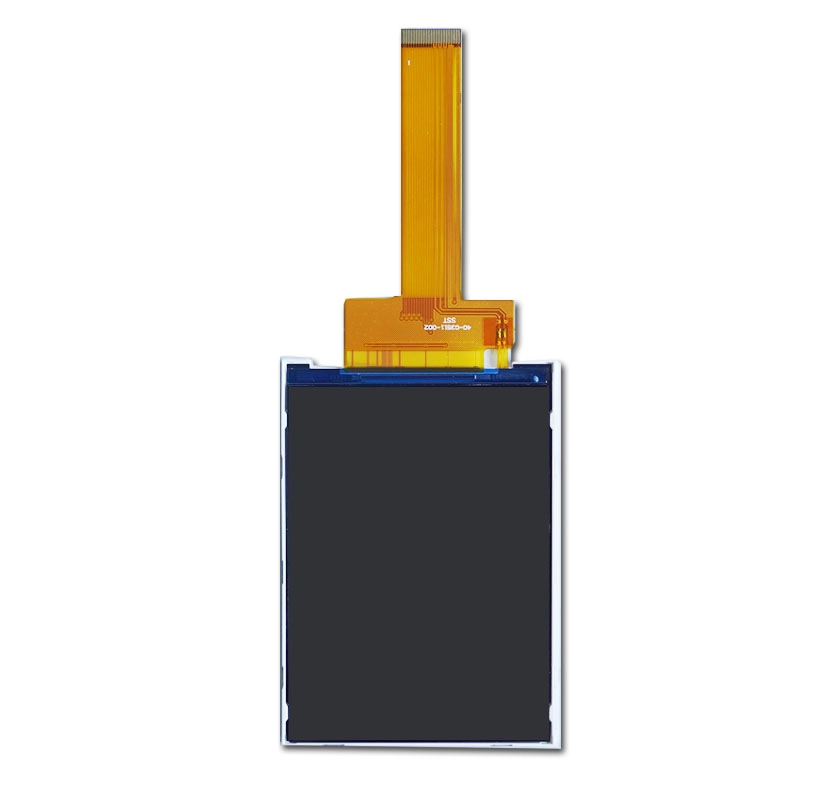

3.5″ IPS TFT LCD Display
Here are the key points about this 3.5 inch TFT Color LCD :
- The 3.5 inch TFT Color Display features a resolution of 320×480 pixels, making it suitable for a variety of applications that require compact, high-quality displays.

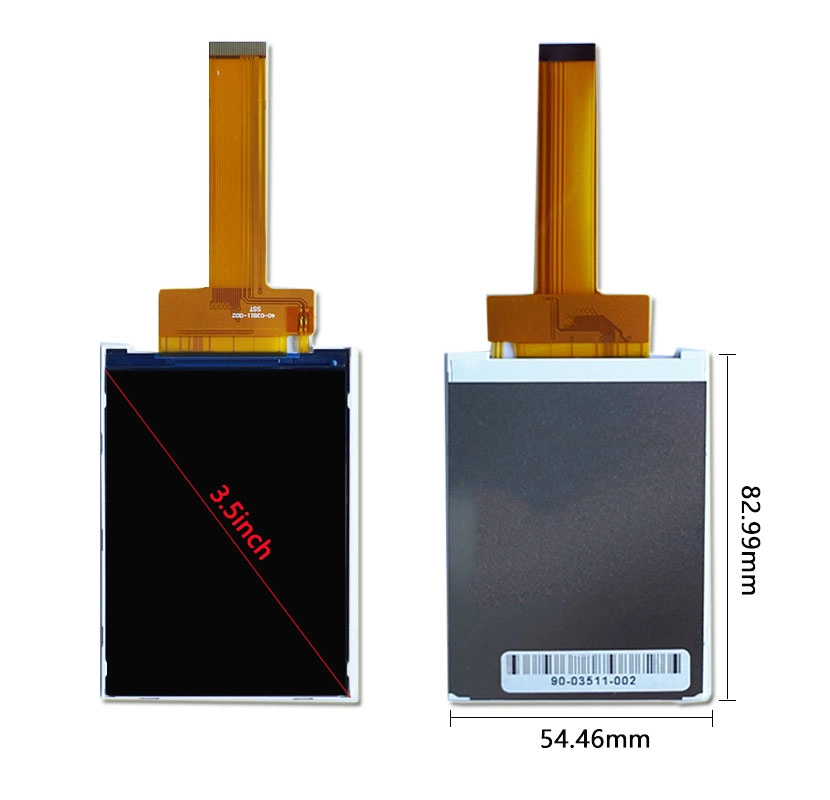

- With an active area of 48.96×73.44mm and overall dimensions of 54.46×82.99×2.15mm, it enables easy integration into diverse device designs.
- With a wide viewing angle of 80° in all directions, the display ensures consistent image quality and color accuracy.
- It features 500 cd/m² brightness for excellent indoor/outdoor visibility and a 20,000-hour LED backlight lifetime.
- With a high 1000:1 contrast ratio for enhanced clarity and vibrancy, the module operates at -20°C to 70°C and stores at -30°C to 80°C.
- Finally, it features a 24-pin MCU interface, allowing for seamless integration with modern microcontrollers for efficient data transfer and communication.

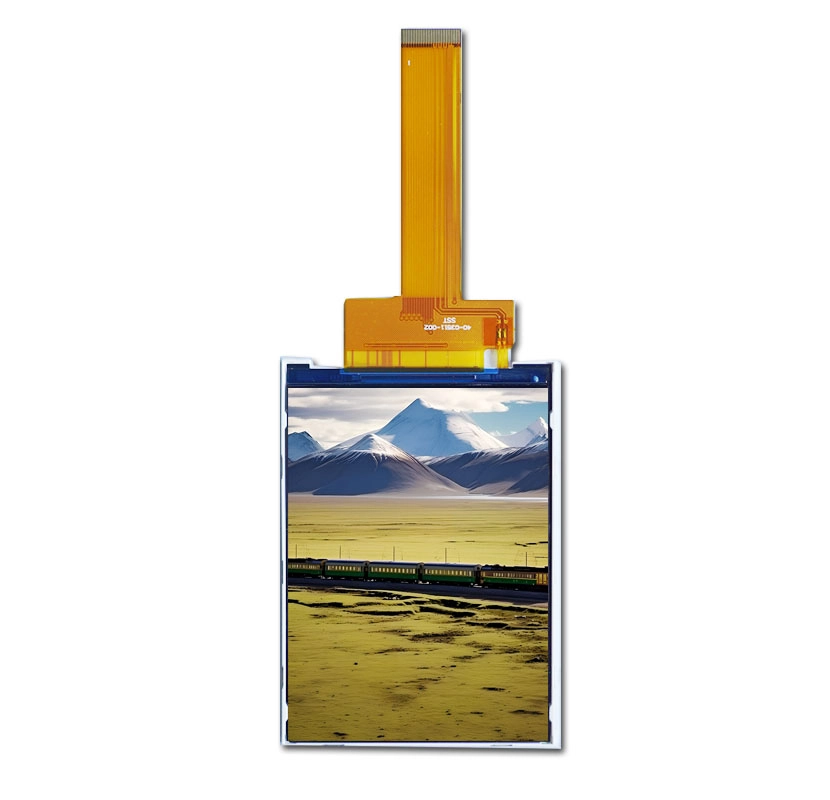

3.5″ TFT Display with wide viewing angle
The 3.5 inch TFT Color LCD color display features a wide viewing angle, enabling views from various angles to enhance the user experience.
This is particularly beneficial in collaborative environments like meetings or presentations, where multiple users can simultaneously view the screen.
This feature makes the display suitable for a range of applications, including consumer electronics such as smartphones and tablets, automotive displays for easy readability by both drivers and passengers, and medical devices that enable healthcare professionals to access critical data from different positions.
Additionally, the wide viewing angle helps reduce glare and reflections, improving visibility in varying lighting conditions and ensuring a clearer viewing experience.
3.5″ TFT-LCD Product Specifications
| 3.5 inch TFT Color Display Specifications | |||

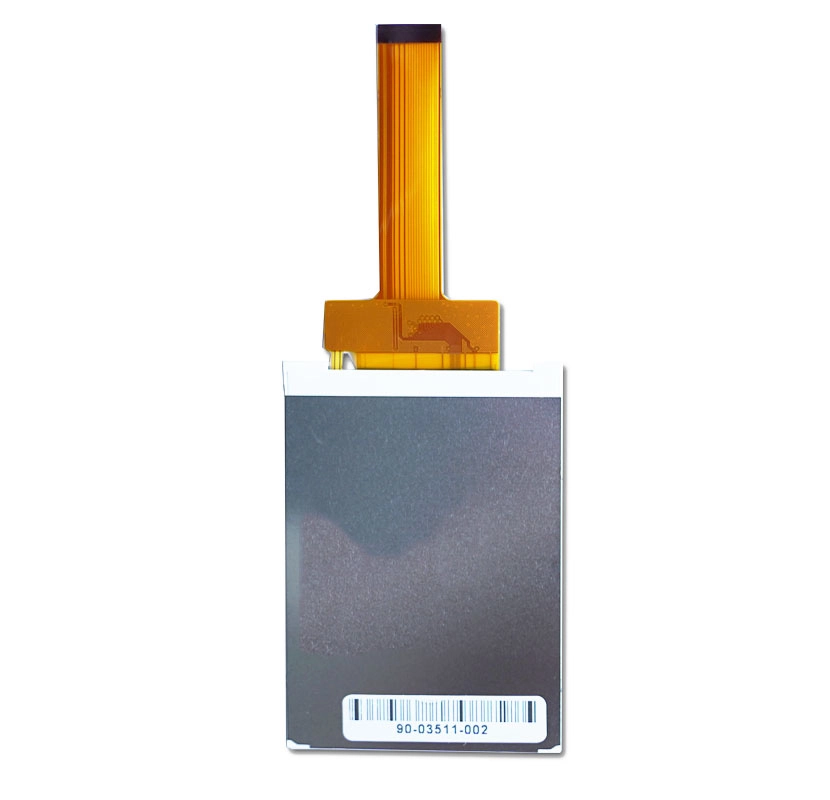

| Modellnummer | 90-03511-002 | Betriebstemperatur | -20℃ to +70℃ |
| Display Size | 3,5 Zoll | Lagertemperatur | -30℃ to +80℃ |
| Auflösung | 320 × 480 pixels | LED-Lebensdauer | 20.000 Stunden |
| Module Dimensions | 54.46 × 82.99 × 2.15 mm | Touchscreen | Not included |
| Aktiver Bereich | 48.96 × 73.44 mm | Kontrastverhältnis | 1000:1 |
| Helligkeit | 500 cd/m² | Stromversorgung | 3.3V DC |
| Schnittstelle | MCU Parallel | Display -Technologie | TFT Color LCD |
| Blickwinkel | All directions | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
