Beschreibung
3.2″ Amoled Displays Features

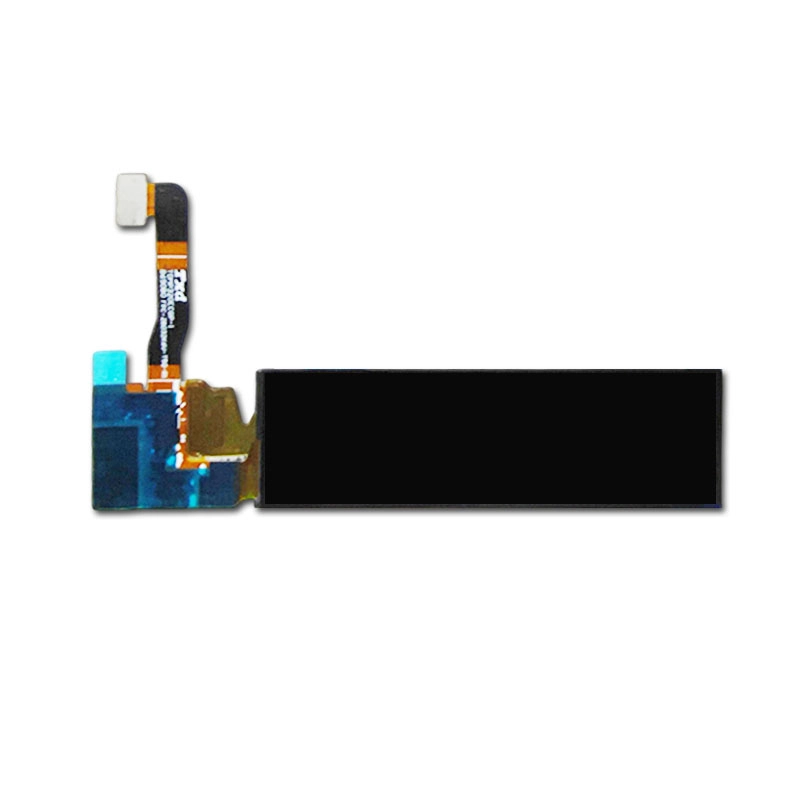

Here are the key points about this 3.2 inch Amoled Oled Display :
This 3.2 inch Amoled Oled Display employs AMOLED (Active Matrix Organic Light Emitting Diode) technology, renowned for its vibrant colors, deep blacks, and high contrast ratios.
It features MIPI (Mobile Industry Processor Interface) for high-speed communication with various controllers.
The display supports ALL O’clock viewing directions, ensuring consistent visibility from multiple angles without color distortion.
With a typical luminance of 500 cd/m², it ensures good visibility in diverse lighting conditions.
Additionally, it boasts an impressive contrast ratio of 100,000, providing exceptional depth and detail to enhance the overall viewing experience.
3.2″ Amoled Display Application
This color oled display is well-suited for wearable technology, such as smartwatches and fitness trackers, where a small, high-resolution interface is essential for user interaction. It is also ideal for automotive displays, particularly in dashboard interfaces, where high display quality is crucial for navigation and information systems, even in limited spaces. Additionally, the display serves as an excellent option for embedded systems and custom electronics projects, making it perfect for DIY endeavors that require a compact, high-quality display for effective user engagement.

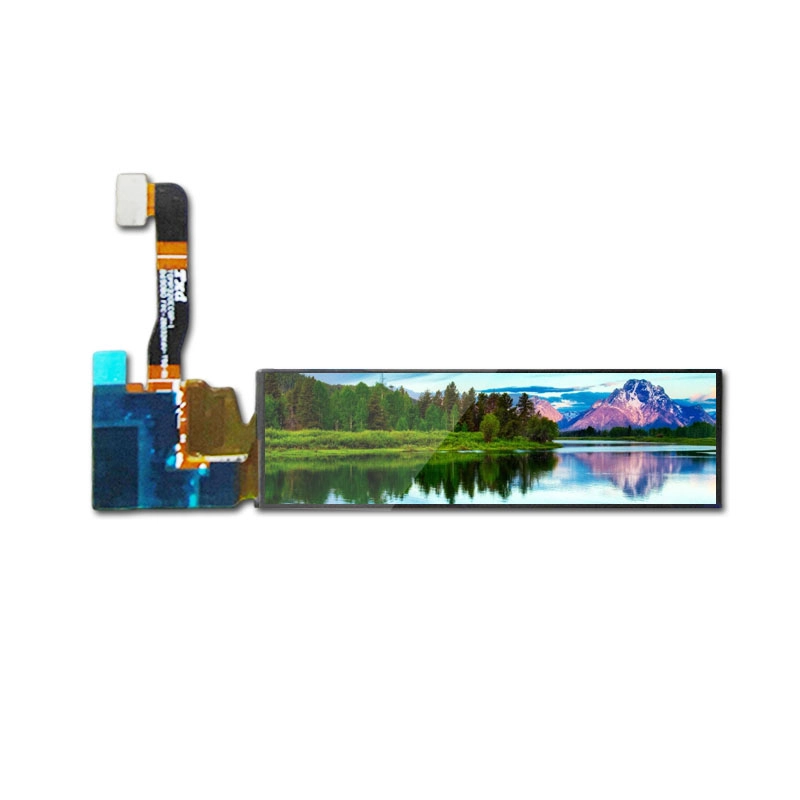

3.2″ Amoled Screen Display
| 3.2″ Amoled Screen Display | |||
| LCD-Größe (Zoll) | 3.2(Diagonale) | View direction | ALLE |
| Anzahl der Pixel | 262(h)*928(v) | Stromversorgung | 3.3v |
| Pixel Pitch(um) | 84(H)X84(V) | Kontrastverhältnis | 100000 |
| Umriss Dimension | 23.808(W) ×81.052(H) ×0.83(D) | Betriebstemperatur | -20 ℃ ~ 70 ℃ |
| Aktiver Bereich | 22.008(H) ×77.952(V) | Luminanz | 500 (TYP.) |
| Art der Anzeige | Amoliert | Treiber IC | RM690C0 |
| Schnittstelle | MI PI | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
