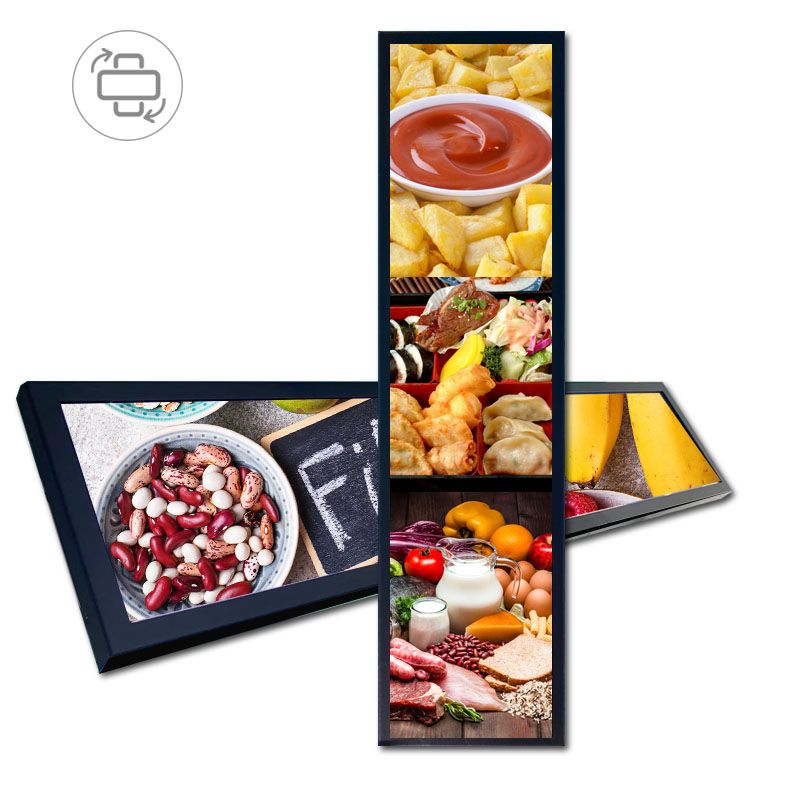

28 inch Bar Type Stretched TFT LCD Display
Here are the key points about the 28 inch Bar Stretched TFT LCD:
Viewing Angle Technology:Utilizes IPS (In-Plane Switching) technology.Offers wide viewing angles of 89° in all directions due to the IPS technology.
Enhanced Features:They enhance it with an anti-glare treatment, which improves visibility in different lighting conditions. They give it a 3H surface hardness, thereby adding to its durability.
Power Consumption:The backlight power consumption is 400 mA at 55-65V.The LCD glass power consumption is 12V.
Application Suitability:Well-suited for various applications that demand high-quality visuals and robust performance, thanks to its features like resolution, brightness, viewing angles, and durability.
28″ Bar LCD Display Application
The 28 inch Stretched TFT LCD’s versatility allows people to apply it in numerous fields. For example, in digital signage, its high brightness and wide viewing angles make it an ideal choice for retail and advertising displays. In medical imaging, its high resolution and IPS technology ensure accurate color representation, suitable for radiology and pathology applications. The display’s durability and glare resistance make it perfect for industrial control panels, allowing operators to monitor systems in various environments. Additionally, its fast response time and high refresh rate enhance the experience for gaming monitors, while its color accuracy and wide viewing angles cater to professional video editing needs. These examples highlight the display’s potential applications, which may vary based on specific customer or industry requirements.
| 28″ Bar LCD Display | |||
| Diagonale Größe | 28 ″ (Diagonal) | Behandlung | Anti-Blend |
| Pixelnummer | 1920*360 Pixel | Oberflächenhärte | 3H |
| Luminanz | 500 | Lebensspanne | 50k |
| Modulgröße | 729.2*161*17.6 | Schnittstelle | LVDS |
| Aktiver Bereich | 698*130.95 | Betriebstemperatur | 0 ~+50 ℃ |
| Ansichtsrichtung | ALLE | Lagertemperatur | -20 ~+60 ℃ |
| Ansicht Ansicht (u {{url_placeholder_0}}) | 89/89/89/89 | ||
The stretched bar LCD display features prominently in digital info display tech. With an ultra-narrow frame and high brightness, and using special-shaped laser cutting (round, square, triangle, long strip), it boosts the screen display ratio for commercial and industrial use.
People widely apply it in areas like security monitoring, command centers, on-board buses, exhibition displays, multimedia teaching, supermarket guides, school studios, video conferencing, multifunctional exhibition halls, entertainment venues, restaurants, publicity displays, brand store showcases, subways and high-speed rails, and enterprise exhibition halls.
