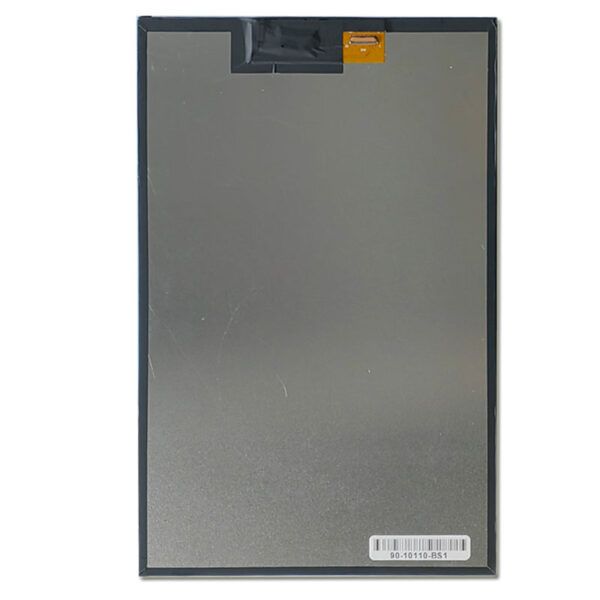

10.1 TFT IPS Display Screen
Here are the key points about the 10.1 TFT IPS Display Screen:
Brightness:Has a brightness of 380 cd/m².Offers clear visibility in various lighting conditions due to this brightness level.
LED Backlight:The LED backlight has a lifespan of 20,000 hours.Provides long-term reliability with minimal maintenance.
Contrast Ratio:The display has a contrast ratio of 1000:1.Delivers deep blacks and bright whites, thus enhancing the overall image quality.
Application Suitability:Ideal for both indoor and semi-outdoor applications.Applicable in industrial controls.Can be used in consumer electronics.Also suitable for automotive displays.
10.1 LCD Display Module for Industrial
This Industrial screen can function reliably in diverse environments, from outdoor gate controls in colder climates to indoor systems in warmer, more controlled settings. This makes it particularly useful in surveillance systems, smart locks, and digital access terminals where consistent performance is critical for security management.
| 10.1 TFT Display Screen | |||
| Modellnummer | 90-10110-BS1 | Betriebstemperatur | -20~70 |
| Größe | 10.1 | Lagertemperatur | -30~80 |
| Auflösung | 800*1280 | LED-Lebensdauer | 20000 |
| Umriss Dimension | 170*256*5.45 | Touchscreen-Unterstützung | kapazitiv |
| Aktiver Bereich | 135.36*216.58 | Kontrastverhältnis | 1000:01:00 |
| Helligkeit(cd/m²) | 380 | Stromversorgung | 3.3V |
| Schnittstelle | Mipi | Anzeige Typ | Farb-LCD |
| Ansicht Richtung | ALLE | ||
Miqidisplay Standard-TFT-Displays reichen in der Größe von 2,0″ bis 10,1″ und verfügen über die TN-Technologie (Twisted Nematic). Sie bieten wesentliche Eigenschaften für verschiedene Anwendungen. Sie arbeiten effizient in einem breiten Temperaturbereich von -20°C bis +70°C und bieten Betrachtungswinkel von 12:00 oder 6:00. Damit sind sie für verschiedene Umgebungen geeignet. TN-TFTs unterstützen Full-Motion-Grafiken und stellen eine wirtschaftliche Lösung für Projekte dar, die lebendige Vollfarb-Displays erfordern, ohne Kompromisse bei der Leistung einzugehen.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
