Beschreibung

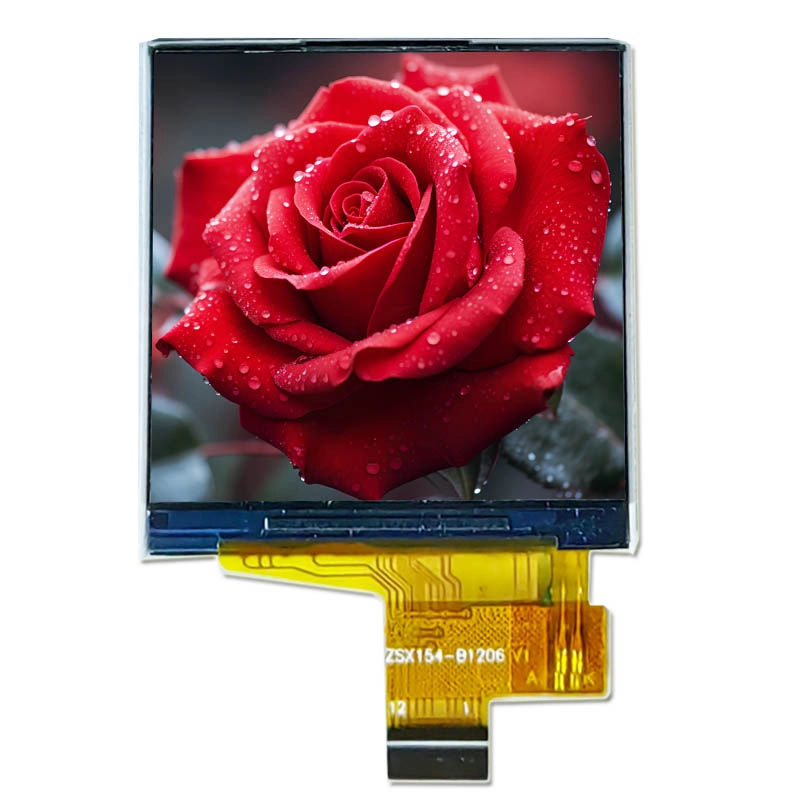

1.54″ Custom TFT Screen Features
Here are the key points about this 1.54 inch IPS Industrial LCD Screen :
- The 1.54 inch IPS Industrial LCD Screen offers a wide viewing angle of 80° in all directions, ensuring consistent image quality and color accuracy.
- With a brightness level of 350 cd/m², it provides good visibility in indoor and moderately lit environments, and the display boasts a high contrast ratio of 1200, enhancing clarity and vibrancy.
- Additionally, the module utilizes a 12-pin SPI interface, facilitating seamless integration with modern microcontrollers for efficient data transfer.
ST7789 TFT Display
The ST7789 is a widely used display driver IC in TFT-LCD modules like the 1.54-inch display, supporting resolutions up to 240×320 pixels, which aligns well with its 240×240 pixel resolution.
It features a comprehensive command set for easy control of display functions, including initialization and memory operations, allowing developers to customize the display’s behavior as needed.
Designed for low power consumption, the ST7789 is particularly suited for battery-operated devices, helping to extend battery life while ensuring reliable performance.
1.54″ TFT-LCD Product Specifications
| 1.54″ TFT-LCD Product Specifications | |||
| Modellnummer | 90-15403-001 | Betriebstemperatur | -20℃ to +70℃ |
| Display Size | 1.54″ (diagonal) | Lagertemperatur | -30℃ to +80℃ |
| Auflösung | 240 × 240 (Square) | LED-Lebensdauer | 20.000 Stunden |

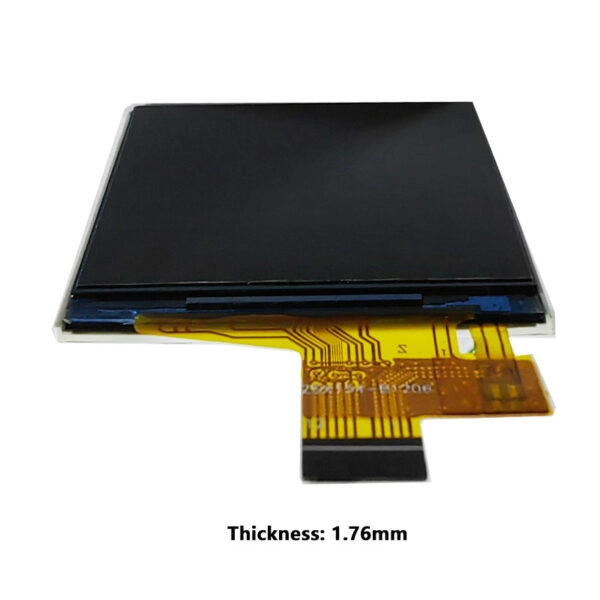

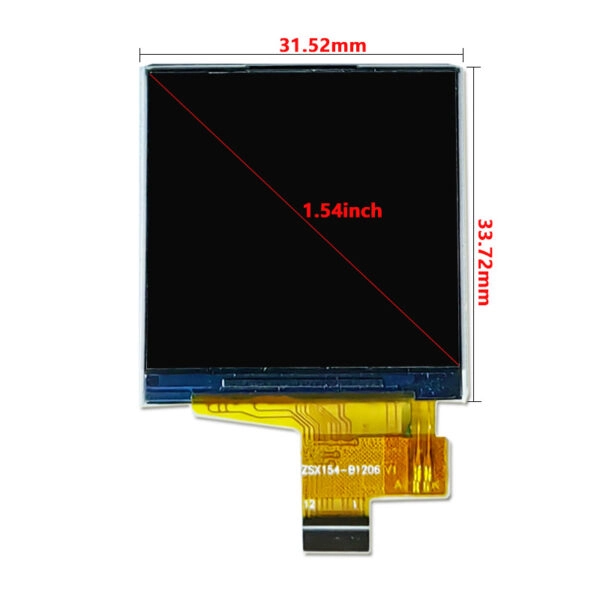

| Module Dimensions | 31.52 × 33.72 × 1.76 mm | Touchscreen | Not included |
| Aktiver Bereich | 27.72 × 27.72 mm | Kontrastverhältnis | 1200:1 |
| Helligkeit | 350 cd/m² | Stromversorgung | 3.3V DC |
| Schnittstelle | SPI (4-wire) | Anzeige Typ | Farb-TFT-LCD |
| Blickwinkel | All directions | ||
Anpassbare Teile
Display-Kabel
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Kundenspezifisches Glas und Touchscreen
Um die Haltbarkeit und Leistung des Monitors zu verbessern, können Sie sich für ein maßgeschneidertes Deckglas für Ihren Monitor entscheiden. Sie können die für Sie passende Dicke wählen und sich für die optische Verklebung entscheiden, die den Monitor vor Feuchtigkeit und Bruch schützt.
Kontaktieren Sie uns Um die beste angepasste Lösung zu erhalten.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
